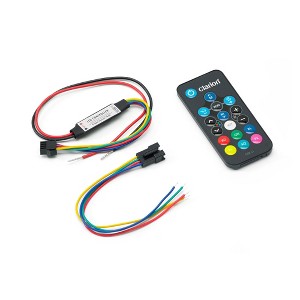

Clarion CMR-L1 Marine LED Light Controller

The Clarion CMR-L1 Marine LED light controller adds some flair to Clarion and other RGB LED marine speakers! Specifications: • Dynamic Modes 20 • Dynamic Speed Levels 10 • Static Colors 20 • Direct Preset Colors 7 • Brightness Levels 8 • Operating Voltage 10- 15V DC • Operating Temp Range -4 ° F to + 1 58 ° F, (-20 °C to + 70 °C) • Operating Frequency 433.92 MHz • Operating Range* Up to 15 m (49.2 ft) • Output Capacity 2 A (maximum) • Recommended Fuse Value 10 A (maximum) • Dimensions 2. 99 in x 2 in x 1 .07 in • (Transmitter) 76 mm x 50.8 mm x 27.2 mm • Dimensions 4.02 in x 3.01 in x 1.42 in • (Receiver) 102.1 mm x 76.5 mm x 36.1 mm Notes: • Install in a dry, well-ventilated location; do not install in an engine compartment or other areas of extreme heat. Do not install where it will be directly exposed to the elements. • To optimize performance, avoid confined installation locations or areas surrounded by metal; maintain at least 25 cm (10 in) of separation from any audio signal cables. • Make sure the total amperage demands of all connected LED circuits does not exceed the output capacity of the controller. • *Install a fuse (not included) at the main +12V power wire (Red) connection point that is appropriate for the total current draw of all LED circuits (up to 10 A). • For short-circuit protection, we recommend installing a fuse (not included) at EACH speaker's +12V LED connection lead. Refer to your speaker's LED specifications for individual fuse values.
