About this item
Highlights
- High performance in a compact stylish design
- Extra full set of controls to fine-tune the in-car performance
- The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically
- Provided remote-level control
- Compatible with every car audio system
Description

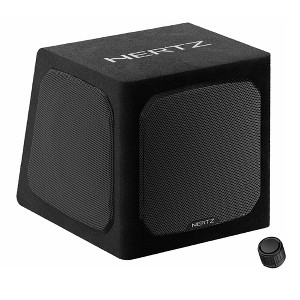

High performance in a compact stylish design
The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car.
Technical Specs
Size mm (in.): 200 (8)
Power Handling - Continuous W: 220
Power Handling - Peak W: 440
Impedance Ohm: 0.4
Design: Active subwoofer box with double passive radiators
Voice Coil Ø: 38.6 (1.52) mm (in.)
Frequency Response Hz: 32 ÷ 400
Magnet size D x d x h mm (in.): 115 x 47 x 25 (4.5 x 1.8 x 0.98)
Weight of one component kg (lb.): 6.7 (10.54)
Magnet: High Density Flux Ferrite
Power Supply
Operating voltage VDC (Fuse): 6.5 ÷ 18 (15A)
Start - Stop voltage VDC: 6
Idling current A (Power OFF): 260 m (1 m)
Consumption @ 14,4 VDC Max musical power A: 8.5
Remote IN Turn on VDC (Current): 4 (1 mA)
PRE input signal Turn ON VRMS: 10 mV
SPK input DC Turn ON VDC: 2
Amplifier Stage
Distortion - THD @ 100 Hz %: 0.15
Bandwidth Hz: 15 - 150
S/N ratio dBA: 100
Output power (RMS) @ 14,4 VDC, 1% THD W: 220
Signals Inputs / Filter
PRE input signal VRMS (impedance): 0.2 ÷ 5 (10kΩ)
SPK input signal VRMS (impedance): 1.2 ÷ 30 (6Ω)
LO-PASS Filter @ 24 dB Oct adjustable Hz: 50 ÷ 150
Subsonic Filter @ 24 dB Oct Fixed Hz: 15
Phase switch: 0 / 180°
Bass Boost @45 Hz dB: 0 ÷ 6
Sub remote volume control dB: 0 ÷ -15 (HRC 01 included)
Dimensions (Overall): 11.46 inches (H) x 10.39 inches (W) x 12.42 inches (D)
Weight: 20.0 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 92610502
UPC: 8018823140577
Origin: made in the USA or imported
