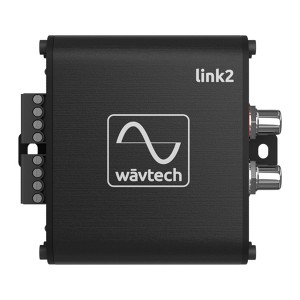

Wavtech link2 - 2-Channel Line Output Converter

If you need a high-quality 2-channel LOC, but don’t require additional features like summing or auxiliary inputs, the link2 is the perfect solution. It is extremely small so it will fit almost anywhere, simplifying installations. Like all our products, it has OEM load detect for factory systems that require resistance to function properly. The link2 will accept up to 40V RMS through its speaker inputs, while delivering up to 10V RMS of output at less than 50 ohms. link2 Features 2-Channel Line Output Converter (LOC) Differential Balanced Inputs Low Impedance Outputs Variable Gain Adjustments w/Clip LEDs Auto-Turn On via DC-Offset or Audio Signal Detect Generated +12V Remote Output OEM Load Detect Compatible Locking Detachable Power/Speaker Terminals Professional Grade Panel Mount RCA’s Compact Aluminum Chassis w/Detachable Mounting Tabs link2 Specifications Output Voltage (Max): >10Vrms Output Impedance: <50Ω Input Sensitivity: 2-20Vrms, 4-40Vrms Max Input Voltage: 40Vrms Frequency Response: 100kHz THD+N SPK: <0.01% S/N SPK: >110dBA Turn-On Trigger: +12V, DC-offset & Audio Detect Generated +12V Output: >500mA Chassis Dimensions: 1.1”x2.9”x2.5” (29x75x63mm)
