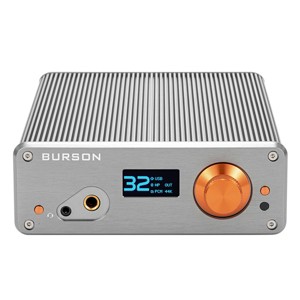

Burson Audio Playmate 3 USB DAC & Headphone Amplifier

The Playmate 3 combines an ESS9039 DAC supporting 768kHz PCM and DSD512 with a high-current headphone amplifier and preamp. It shares core design elements with Bursons Conductor GT4 including its DAC output stage single-ended headphone amplifier opamp rolling and Silent Power module upgrades.

Features
•3W Class-A Headphone Amplifier
•ESS9039 High-Resolution DAC
•DSD512 And 768kHz PCM
•Two-Level Gain Control
•Gaming Headset Mic Input
•Swappable NE5532 IC Opamps

3 Is A PartyThe Playmate 3 combines a high-performance ESS9039 DAC 768kHz and DSD512 capability high-current headphone amplification and preamp functionality. Its architecture shares the DAC output stage and single-ended headphone amplifier design of Bursons Conductor GT4 and supports opamp rolling and Silent Power module upgrades.

3 Is Here To ThrillA 30W idling bias enables up to 3 watts per channel of Class-A amplification supported by Bursons Max Current Power Supply architecture.

Connect Them AllXMOS USB-C connects phones laptops and streamers while supporting native DSD512 and 32-bit/768kHz audio. The Playmate 3 is also Roon Tested for use with compatible Roon systems.

Fun GamesThe Playmate 3 provides an HD microphone input for PC gaming and an optical input for gaming consoles. Remote preamp operation is optional; the Standard version is specified without a remote.

Quieter Than Battery PowerBurson Silent Power modules provide power filtering intended to reduce regulator noise and preserve low-level musical detail. The page states a noise-filtering rate more than 200 times better than standard regulators.

Super Charge or Go FusionPower-supply upgrades can further reduce DC noise. Burson identifies the Super Charger and Fusion Core as upgrade paths with the Fusion Core using GaN transistors operating above 1 MHz and providing up to 480W.

Playmate Your WayThe Playmate 3 supports ongoing upgrades through swappable opamps Silent Power modules and compatible higher-performance external power supplies such as the Super Charger or Fusion Core.

What's in the Box
•Playmate 3 USB DAC Headphone Amplifier
•24V/3A Power Supply
•Manual

Specifications
•General
•Version: Standard NE5532 IC Opamps / SP01 / 24V3A PSU / No Remote
•Input Impedance: 38 KOhms
•Frequency Response: 1 dB 0 35Khz
•THD: 0.002%
•Output Impedance (Head Amp): 2 Ohm
•Output Impedance (Pre Out): 15 Ohm


•Connectivity
•Inputs: USB | Toslink | 3.5 AUX Headset With Mic
•Outputs: Pre-Amp | DAC | Headphone Jack


•Headphone Output 16 Ohm
•Power (High / Low): 3.5W / 1W
•Signal To Noise Ratio: 96db
•Separation: 99%


•Headphone Output 32 Ohm
•Power (High / Low): 2.5W / 800mW
•Signal To Noise Ratio: 97db
•Separation: 99%


•Headphone Output 100 Ohm
•Power (High / Low): 600mW / 200mW
•Signal To Noise Ratio: 98db
•Separation: 99%


•Headphone Output 150 Ohm
•Power (High / Low): 400mW / 150mW
•Signal To Noise Ratio: 96db
•Separation: 99%


•Headphone Output 300 Ohm
•Power (High / Low): 150mW / 80mW
•Signal To Noise Ratio: 95db
•Separation: 99.50%


•DAC Performance
•DAC Channel Separation: 128 dB @ 1KHz 121 dB @ 20KHz
•DAC THD+N: 0.0018% @ 1KHz 0dBFS


•System Compatibility
•Desktop OS: Win XP 7 8 10 Ma
