Amplifier can produce 125 watts x 2 for the main speakers and 250 watts x 1 for the subwoofer
Channels 3/4 have a 1-band PEQ, a subsonic filter and the ability to add an RLC to fine tune the subwoofers performance
New adaptive loading technology plus the ability to handle up to 40V of hi-level input
Auto Turn-On via DC-Offset or Audio Signal Detect
Locking Detachable Hi-Level Speaker Terminals
Description

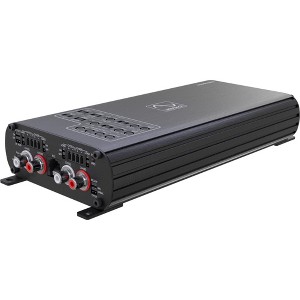

A pair of new front speakers and a subwoofer is one of the most common aftermarket audio upgrades. The link500.4mini is the perfect amplifier for this application. When used in 3-channel mode, the amplifier can produce 125 watts x 2 for the main speakers and 250 watts x 1 for the subwoofer, so it won’t lack for power. Speaking of the subwoofer, channels 3/4 have a 1-band PEQ, a subsonic filter and the ability to add an RLC to fine tune the subwoofers performance. The link500.4mini has our new adaptive loading technology plus the ability to handle up to 40V of hi-level input. It also has fully adjustable high and low pass crossovers. For factory audio systems where no full-range signal is present, the link500.4mini has built-in summing, so it can handle that internally, without the need for an outboard processor. Like all Wāvtech amplifiers, the link500.4mini is start/stop system compatible. link500.4mini Features
500 Watt 4-Channel Amplifier
75 watts x 4 @ 4 ohms
125 watts x 4 @ 2 ohms
250 watts x 2 @ 4 ohms BTL
Small Footprint Only 9”x4.5”x1.65” Adjustable Paragraphic EQ (Channels 3/4)
Variable Subsonic Filter (Channels 3/4)
Variable Hi/Low Pass Crossover (-12dB/oct)
Remote Level Control (RLC) w/Optional linkRC (CH 3/4)
Built-In Summing w/Level Trim Adjsutment
Start/Stop Sytem Compatiable
Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Adaptive OEM Load Technology
Locking Detachable Hi-Level Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs link500.4mini Specifications
Input Sensitivity SPK: 1-20Vrms, 2-40Vrms
RCA: 0.2V-5Vrms, 0.4V-10Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: 43kHz (+0/-3dB)
THD+N: <1% at rated power
S/N: >78dBA (1W, 4Ω)
Dimensions (Overall): 9.0 inches (H) x 1.65 inches (W) x 4.5 inches (D)
Weight: 1.0 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 92708123
UPC: 700987201475
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 4.5 inches length x 1.65 inches width x 9 inches height
Estimated ship weight: 1 pounds
item ships from third party seller: Creative Audio
