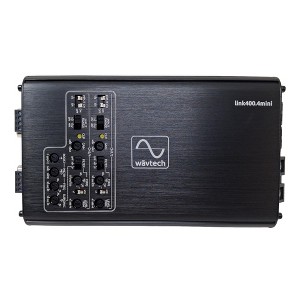

Wavtech LINK400.4MINI 400W RMS Compact 4-Channel Bridgeable Amplifier

Wavtech LINK400.4MINI 400W RMS Compact 4-Channel Bridgeable Amplifier Build a factory or aftermarket audio upgrade with the link400.4mini. This four-channel bridgeable amplifier combines matrix summing, adaptive OEM loading and speaker-level inputs up to 40Vrms. Channels 3/4 add a parametric EQ, subsonic filter and support for the optional linkRC remote level control. Start/stop compatibility and active thermal rollback support vehicle integration. TECH SPECS • RMS power at 4 ohms: 65W x 4 • RMS power at 2 ohms: 100W x 4 • Bridged RMS power at 4 ohms: 200W x 2 • Power-rating conditions: 14.4V; less than 1% THD+N • Speaker input sensitivity: 1–20Vrms / 2–40Vrms • RCA input sensitivity: 0.2–5Vrms / 0.4–10Vrms • HP/LP crossover: 50–500Hz or 500Hz–5kHz; -12dB/octave • CH3/4 parametric EQ: 0 to +12dB boost; Q 1.4–5; 30–80Hz center frequency • CH3/4 subsonic filter: 10–50Hz; up to -24dB/octave • Overall dimensions (H x W x L): 1.73 x 4.53 x 8.23 inches; includes terminals/tabs IMPORTANT NOTES • Minimum load: 2 ohms per channel or 4 ohms bridged. linkRC remote is optional and sold separately. • Requires an external 50A fuse (not included) and minimum 8AWG power wiring. Install in a dry, ventilated location.
