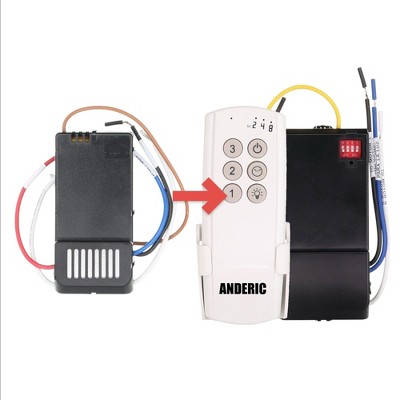

Anderic UC7067REVB Direct Replacement Ceiling Fan Reverse Module for UC7067-REV-B and Other Variations

IMPORTANT: The Anderic UC7067REVB is a reversing module only and is not a ceiling fan receiver. Replace this module only if your ceiling fan no longer changes between forward and reverse operation. If your fan operates at only one speed, or if the fan and light do not respond at all, the problem is typically a failed receiver or remote control—not the reversing module. The UC7067REVB is a replacement reversing module designed to restore the forward/reverse function on compatible ceiling fans that were originally equipped with a reversing module. Installation is simple: replace the existing module with the new unit using the factory wiring connections. This module is intended as a direct replacement for many original reversing modules with the same 9-pin connector, even if the printed part numbers differ. Compatible with select Hampton Bay®, Harbor Breeze®, and other ceiling fan brands, the UC7067REVB works with the following receivers: FAN28R, FAN28RUDL, UC7067, UC7067GMRX, UC7067FMRX, and UC7067FCRX. Compatible remotes include UC7078TR, UC7080T, UC9051GTB wall control, and the UC70961TX thermostatic remote when used with a FAN28R receiver. Installation Note: This module is designed only for ceiling fans that originally included a reversing module. It cannot be added to fans that were not factory-equipped with reverse module wiring. Specifications:

• Input: 120V AC, 60Hz
• Rated Voltage: 300VAC
• Certifications/Markings: C61, E185116
• Frequency Rating: 50/60Hz

Manufactured by Anderic®. Compatible with select Hampton Bay®, Harbor Breeze®, and other compatible ceiling fan models.
