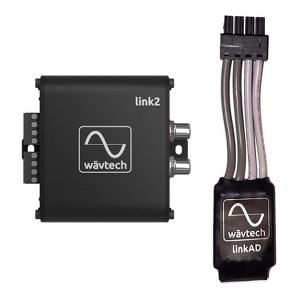

Wavtech link2 + linkAD Adaptive OEM Integration Kit

This bundle includes a Wavtech link2 - 2-Channel Line Output Converter and a Wavtech linkAD Adaptive Load Module for universal applications (2-channel). The Wavtech link2 is a high-quality 2-channel Line Output Converter (LOC) perfect for those who don't need extra features like summing or auxiliary inputs. Its compact size allows for easy installation in tight spaces. Key features include differential balanced inputs, low impedance outputs, and variable gain adjustments with clip LEDs. It supports auto-turn on via DC-offset or audio signal detect and generates a +12V remote output. The link2 is OEM load detect compatible, ensuring compatibility with factory systems that require resistance. It accepts up to 40V RMS through its speaker inputs and delivers up to 10V RMS output at less than 50 ohms. The chassis dimensions are 1.1”x2.9”x2.5” (29x75x63mm). Specifications for the link2 include an output voltage of over 10Vrms, output impedance of less than 50Ω, input sensitivity ranging from 2-20Vrms to 4-40Vrms, and a frequency response from less than 10 Hz to over 100kHz. The total harmonic distortion plus noise (THD+N) is less than 0.01%, and the signal-to-noise ratio (S/N) is greater than 110dBA. The Wavtech linkAD Adaptive Load Module is designed to simplify factory audio integration when upgrading to aftermarket amplification. It ensures proper operation of factory radios by providing the necessary speaker load, preventing issues like reduced output or warning messages. The module uses adaptive load technology and can handle signals up to 40 Vrms, making it suitable for both standard and high-output factory audio systems. Its compact 3.73-inch design allows for easy installation in confined spaces, making it ideal for installers and enthusiasts looking to retain factory functionality while enhancing system performance.
