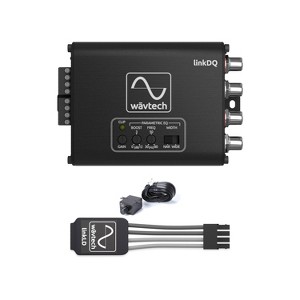

Wavtech linkDQ + linkRC + linkLD Premium OEM Integration Kit

This bundle includes the Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capability, the Wavtech linkRC - Remote Level Control for linkDQ, and the Wavtech linkLD - Additional Load Pack. The Wavtech linkDQ is a versatile 2-channel line output converter and line driver that combines the best features of previous models. It offers an adjustable parametric EQ with selectable narrow or wide frequency ranges from 30Hz to 80Hz, allowing precise audio adjustments. The linkDQ supports auto turn-on via DC-offset or audio signal detect and includes an RJ45 port for optional remote level control. It features differential balanced inputs, low impedance outputs, and variable gain adjustment with a clip LED. The compact aluminum chassis measures 1.1”x2.9”x3.5” (29x75x89.5mm) and includes detachable mounting tabs. Key specifications of the linkDQ include a maximum output voltage of over 10Vrms, output impedance of less than 50Ω, and input sensitivity for speaker (2-20Vrms, 4-40Vrms) and RCA (0.5-5Vrms). It boasts a frequency response from below 10Hz to over 100kHz, THD+N of less than 0.04%, and a signal-to-noise ratio exceeding 115dBA for speaker inputs and 116dBA for RCA inputs. The Wavtech linkRC remote level control allows easy adjustment of the output level for select Wavtech devices. It offers flexible mounting options, including standard installation under the dash or custom installation with a flush-mounted knob. The Wavtech linkLD Additional Load Pack provides an in-line parallel load for applications requiring extra resistance. It features a 2-channel 45Ω parallel load, capable of handling 40Vrms input for high-power factory systems. The convenient in-line design includes OFC speaker wire for reliable performance.
