About this item
Highlights
- VM dual magnet cartridge with Shibata stylus
- Aluminum tapered cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
Description

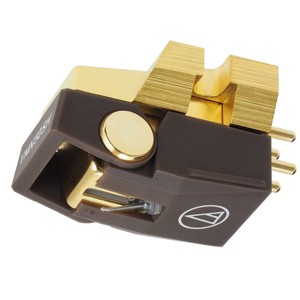

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technicas new VM cartridge line a line that harks back to A-Ts early days as a manufacturer primarily of high-end phono cartridges while also incorporating todays advanced technology. Like all VM cartridges the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridges Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.
Features
•VM dual magnet cartridge with Shibata stylus
•Aluminum tapered cantilever
•Paratoroidal coils improve generating efficiency
•Center shield plate between the left and right channels reduces crosstalk
•Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
What's in the Box
•VM750SH Dual Moving Magnet Cartridge
•Four cartridge installation screws
•Two washers
•Two hexagon nuts
•Non-magnetic screwdriver
•Brush
•Lead wire set
Specifications
•Frequency response: 20 - 27000Hz
•Channel separation: 30dB (1kHz)
•Vertical tracking force: 1.8 - 2.2g (2.0g standard)
•Stylus construction: Nude square shank
•Recommended load impedance: 47000 ohms
•Output: 4.0mV (at 1kHz 5cm/sec)
•Channel balance: 1.0dB (1kHz)
•Stylus shape: 2.7 x 0.26 mil Shibata
•Cantilever: Aluminum tapered pipe
•Mount: Half-inch
•Coil impedance: 2700 ohms (1kHz)
•DC resistance: 800 ohms
•Load capacitance: 100 - 200pF
•Coil inductance: 460mH (1kHz)
•Static compliance: 40 x 10 - 6cm/dyne
•Dynamic compliance: 10 x 10-6cm/dyne (100Hz)
•Vertical tracking angle: 23
•Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
•Weight: 0.3 ounces
Features
•VM dual magnet cartridge with Shibata stylus
•Aluminum tapered cantilever
•Paratoroidal coils improve generating efficiency
•Center shield plate between the left and right channels reduces crosstalk
•Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
What's in the Box
•VM750SH Dual Moving Magnet Cartridge
•Four cartridge installation screws
•Two washers
•Two hexagon nuts
•Non-magnetic screwdriver
•Brush
•Lead wire set
Specifications
•Frequency response: 20 - 27000Hz
•Channel separation: 30dB (1kHz)
•Vertical tracking force: 1.8 - 2.2g (2.0g standard)
•Stylus construction: Nude square shank
•Recommended load impedance: 47000 ohms
•Output: 4.0mV (at 1kHz 5cm/sec)
•Channel balance: 1.0dB (1kHz)
•Stylus shape: 2.7 x 0.26 mil Shibata
•Cantilever: Aluminum tapered pipe
•Mount: Half-inch
•Coil impedance: 2700 ohms (1kHz)
•DC resistance: 800 ohms
•Load capacitance: 100 - 200pF
•Coil inductance: 460mH (1kHz)
•Static compliance: 40 x 10 - 6cm/dyne
•Dynamic compliance: 10 x 10-6cm/dyne (100Hz)
•Vertical tracking angle: 23
•Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
•Weight: 0.3 ounces
Dimensions (Overall): 1 inches (H) x 4 inches (W) x 4 inches (D)
Weight: .41 pounds
