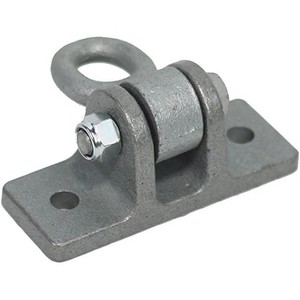

American Swing Products Jensen SH105 Commercial Wood Beam Swing Hanger

Highlights

• The SH105 is built to last, featuring a sturdy construction made of ductile iron and galvanized to resist rust. They have a .51 ID oil light bearing and axle bolt and are designed to be used on wooden swing frames. The plate measures 5 1/4 inches by 2 inches and has ½ inch holes that are 3 3/4 inches center to center. The hole ID is 1 inch top to bottom and ¾ inch side to side.
• With a remarkable tensile strength of 10000 lbs, these swing hangers are built to withstand heavy use and provide a safe and secure way to hang swings on wooden frames. Under optimal conditions, this product should last up to 5 years, even in harsh weather conditions. However, please note that some conditions may require replacement sooner. These swing hangers are sold individually.
• The SH105’s base plate is 2″ wide and 5 1/5″ long. The bracket for the pendulum is 1″ wide and the distance of the outer edges of the bracket for the pendulum is 1 4/5″ wide. The holes for mounting the SH105 are 3 4/5″ from center-to-center. The loop for the pendulum is 7/10″ wide and 1″ tall. The distance from the bottom of the base plate to the tip of the pendulum is 4 3/10″.
• This is for children 0 – 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.
