American Swing Products Jensen SH129 Commercial 5 in. O.D. Steel Pipe Hanger

Name: American Swing Products Jensen SH129 Commercial 5 in. O.D. Steel Pipe Hanger
Brand: American Swing Products
SKU: 91077778
Price: 65.74 USD
Availability: InStock

American Swing Products Jensen SH129 Commercial 5 in. O.D. Steel Pipe Hanger - 2 of 2

American Swing Products Jensen SH129 Commercial 5 in. O.D. Steel Pipe Hanger - 1 of 2

$65.74 sale price when purchased online

$69.03 list price

Target Online store #3991

About this item

Highlights

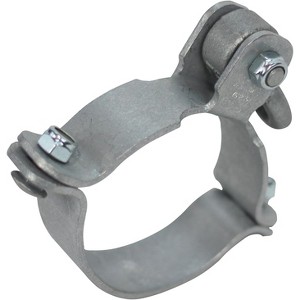

This swing hanger is designed to be a durable and safe option for attaching swings to playground equipment. It has a wide, stamped steel body with a figure eight pendulum at the bottom that incorporates a sintered bronze bearing, which is impregnated with oil to reduce wear. The hanger accepts a 12mm bolt and has a .51″ inside diameter oil light bearing with a lock tight nut. The pendulum is 1″ wide and completely closed, preventing the S-hook or shackle from becoming dislodged.
The two halves of the hanger are bolted together with a 12mm carriage bolt and hex lock tight nut. The pendulum is held to the hanger with a #12 axle bolt with a long shoulder to prevent the bearing from riding on the threads, and it also has a lock tight nut. It is important not to torque the bolts more than 25ft-lbs. during installation.
This swing hanger has a tensile strength of 7500 lbs and is designed to last 2 years in harsh conditions and up to 5 years in optimal conditions, although some conditions may require replacement sooner. It is sold individually.
This is for children 0 – 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.

Description

This swing hanger is 5” O.D. with a 15.7” circumference and features an “oil lite” bronze bearing and axle bolt with lock tight nut. The stamped steel has more ability to bend so they will not snap when torqued too tightly. The lower half of the swing hanger body has a figure eight pendulum with a sintered bronze bearing incorporated into it, to reduce wear. The bronze is impregnated with oil so the bearings do not have to be oiled. The pendulum is 1” wide and is a completely closed figure eight so that the connecting S-hook or shackle cannot be dislodged from the hanger. The two halves of the hanger are bolted together with a 12mm carriage bolt with a hex lock tight nut. The pendulum is held to the hanger with a #12 axle bolt with a long shoulder so the bearing does not ride on the threads. It also has a lock tight nut. This hanger fits a standard Schedule 40 four and half inch pipe. Do not torque more than 25ft-lbs. when installing. This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner. Tensile strength 7500 lbs. Sold as each.

Number of Pieces: 1

Dimensions (Overall): 6 inches (H) x 9 inches (W) x 12 inches (D)

Weight: 4 pounds

Suggested Age: 0-12 Years

Assembly Details: No Assembly Required

Educational Focus: Physical Fitness

Product Name: Jensen SH129 Commercial 5 in. O.D. Steel Pipe Hanger

Material: Galvanized Steel

Battery: No Battery Used

TCIN: 91077778

UPC: 799475869686

Origin: made in the USA or imported
