$1699.00 when purchased online
Target Online store #3991
About this item
Highlights
- Non-magnetic core moving coil cartridge offers superior spatial representation
- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response
- Shibata stylus ensures accurate high and mid-low range reproduction
- 0.28 mm diameter solid boron cantilever provides excellent response characteristics
- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
Description

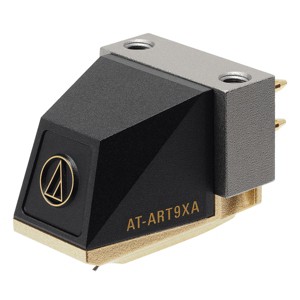

An update of the AT-ART7 the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.
Features
•Shibata stylus
•Neodymium magnet
•Superior Spatial Representation
•Dual Moving Provide High Separation and Wide Response
•Clear Sound Localization and Minimal Distortion
•PCOCC coils ensure high-fidelity transmission
•Machined aluminum base provides excellent playback stability
•Easy installation to a headshell or integrated tonearm
ARTThe ART in the model number stands for Audio-Technica Reference Transducer a designation that they give only to their flagship phono cartridges. Compared with the magnetic core used in most MC cartridges non-magnetic core cartridges are free from magnetic distortion allowing for natural timbre and a precise sound field.
What's in the Box
•AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
•Non-Magnetic Screwdriver
•(2) Washers
•Cartridge Installation Screws
Specifications
•Frequency Response: 20-50000 Hz
•Channel Separation: 30 (dB at 1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
•Stylus Construction: Nude
•Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 2.5 H (1 kHz)
•Output Voltage: 0.2 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 0.5 dB (1 kHz)
•Stylus Shape: Shibata
•Cantilever: 0.28 mm diameter solid boron
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 8.5 g (0.30 oz)
•Dimensions (W x H x D): 16.8 mm (0.66") x 17.3 mm (0.68") 25.0 mm (0.98")
•Threaded Hole M2.6 x 2
Features
•Shibata stylus
•Neodymium magnet
•Superior Spatial Representation
•Dual Moving Provide High Separation and Wide Response
•Clear Sound Localization and Minimal Distortion
•PCOCC coils ensure high-fidelity transmission
•Machined aluminum base provides excellent playback stability
•Easy installation to a headshell or integrated tonearm
ARTThe ART in the model number stands for Audio-Technica Reference Transducer a designation that they give only to their flagship phono cartridges. Compared with the magnetic core used in most MC cartridges non-magnetic core cartridges are free from magnetic distortion allowing for natural timbre and a precise sound field.
What's in the Box
•AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
•Non-Magnetic Screwdriver
•(2) Washers
•Cartridge Installation Screws
Specifications
•Frequency Response: 20-50000 Hz
•Channel Separation: 30 (dB at 1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
•Stylus Construction: Nude
•Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 2.5 H (1 kHz)
•Output Voltage: 0.2 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 0.5 dB (1 kHz)
•Stylus Shape: Shibata
•Cantilever: 0.28 mm diameter solid boron
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 8.5 g (0.30 oz)
•Dimensions (W x H x D): 16.8 mm (0.66") x 17.3 mm (0.68") 25.0 mm (0.98")
•Threaded Hole M2.6 x 2
Dimensions (Overall): .68 inches (H) x .66 inches (W) x .98 inches (D)
Weight: .01 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003837532
UPC: 4961310153984
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
