About this item
Highlights
- Nude Elliptical Stylus Provides precise tracking and detailed sound reproduction
- Aluminum Cantilever Reduces weight and enhances audio quality, especially in higher frequencies
- Rigid aluminum body minimizes unwanted vibrations and reduces resonance for superior audio quality
- Dual Moving Coils offer excellent channel separation and minimize distortion
- Neodymium magnet and pure iron yoke increase magnetic energy for better sound reproduction
Description

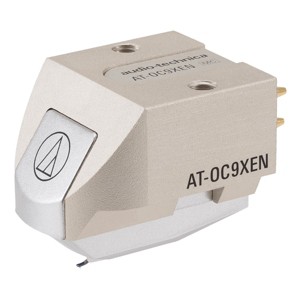

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus thereby minimizing distortion.
Features
•Dual Moving Coil Design
•Low Mass Nude Elliptical Stylus Aluminum Cantilever
•Pre-Threaded Cartridge Body
•Aluminum Body Minimizes Unwanted Vibration
DesignAudio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increase the magnetic energy and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.
What's in the Box
•AT-OC9XEN Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•Installation Hardware
Specifications
•Frequency Response: 20-30000 Hz
•Channel Separation: 25 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude square shank
•Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: Elliptical nude
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 7.6 g
•Dimensions (W x H x D): 0.66" x 0.68" 1.01"
•Body Material: Aluminum
•Stylus Size: Nude square shank
•Terminal Pins: Brass
•Type: Dual Moving Coil
Features
•Dual Moving Coil Design
•Low Mass Nude Elliptical Stylus Aluminum Cantilever
•Pre-Threaded Cartridge Body
•Aluminum Body Minimizes Unwanted Vibration
DesignAudio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increase the magnetic energy and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.
What's in the Box
•AT-OC9XEN Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•Installation Hardware
Specifications
•Frequency Response: 20-30000 Hz
•Channel Separation: 25 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude square shank
•Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: Elliptical nude
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 7.6 g
•Dimensions (W x H x D): 0.66" x 0.68" 1.01"
•Body Material: Aluminum
•Stylus Size: Nude square shank
•Terminal Pins: Brass
•Type: Dual Moving Coil
Dimensions (Overall): 3 inches (H) x 2 inches (W) x 1 inches (D)
Weight: 1.0 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1001268101
UPC: 4961310150433
Origin: made in the USA or imported
