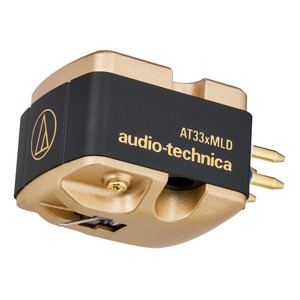

Audio-Technica AT33xMLD Dual Moving Coil Stereo Cartridge
New at target
$799.00
In Stock
Eligible for registries and wish lists
Sponsored
About this item
Highlights
- Independent coils deliver excellent channel separation
- Neodymium magnet and permendur yoke boost efficiency and resolution
- Composite zinc/aluminum/polymer body reduces resonance for natural sound
- Microlinear nude stylus tracks grooves with superior accuracy
- Gold-plated terminals reduce resistance and improve sound
Description
The AT33xMLD features a microlinear nude stylus on a duralumin tapered cantilever delivering warm detailed sound ideal for rock and jazz. Its piano-wire suspension improves tracking and enhances mid-low range performance while the composite zinc aluminum and polymer body minimizes resonance for balanced natural playback. Independent PCOCC coils in the dual moving coil design ensure excellent channel separation and smooth signal transmission supported by a neodymium magnet and permendur yoke for efficient high-resolution sound.
Features
•Dual Moving Coil Stereo Cartridge with Microlinear Nude Stylus
•PCOCC Coils Ensure Smooth Signal Transmission
•Composite Body Reduces Resonance for Balanced Sound
Material DifferenceThe AT33xMLDs rigid duralumin pipe cantilever which tapers toward the microlinear stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilevers fulcrum to ensure pure signal transmission for each channel.
Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials die-cast zinc aluminum and high-rigidity polymer optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies. The AT33xMLD is an excellent choice for playing rock and jazz records particularly those recorded in the 1950s 60s and 70s.
What's in the Box
•AT33xMLD Dual Moving Coil Stereo Cartridge
•Installation Kit
•Manual
Specifications
•Type: MC
•Frequency response: 20 to 42000 Hz
•Output voltage: 0.4 mV (1 kHz 5 cm/sec.)
•Channel separation: 27 dB (1 kHz)
•Output balance: 1.0 dB (1 kHz)
•Tracking force: 1.8 to 2.2 g (2.0 g standard)
•Coil impedance: 12 ohms (1 kHz)
•DC resistance: 12 ohms
•Recommended load impedance: 100 ohms (when head amplifier connected)
•Coil inductance: 26 H (1 kHz)
•Static compliance: 21 10⁻⁶ cm/dyne
•Dynamic compliance: 6 10⁻⁶ cm/dyne (100 Hz)
•Stylus: Nude Microlinear
•Stylus curvature radius: 2.2 0.12 mil
•Cantilever: Duralumin tapered pipe
•Vertical tracking angle: 19
•Dimensions: 16.1 mm (0.63) 16.6 mm (0.65) 26.1 mm (1.0) (H W D)
•Threaded hole: M2.6 2
•Weight: 10.1 g (0.36 oz)
Features
•Dual Moving Coil Stereo Cartridge with Microlinear Nude Stylus
•PCOCC Coils Ensure Smooth Signal Transmission
•Composite Body Reduces Resonance for Balanced Sound
Material DifferenceThe AT33xMLDs rigid duralumin pipe cantilever which tapers toward the microlinear stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilevers fulcrum to ensure pure signal transmission for each channel.
Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials die-cast zinc aluminum and high-rigidity polymer optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies. The AT33xMLD is an excellent choice for playing rock and jazz records particularly those recorded in the 1950s 60s and 70s.
What's in the Box
•AT33xMLD Dual Moving Coil Stereo Cartridge
•Installation Kit
•Manual
Specifications
•Type: MC
•Frequency response: 20 to 42000 Hz
•Output voltage: 0.4 mV (1 kHz 5 cm/sec.)
•Channel separation: 27 dB (1 kHz)
•Output balance: 1.0 dB (1 kHz)
•Tracking force: 1.8 to 2.2 g (2.0 g standard)
•Coil impedance: 12 ohms (1 kHz)
•DC resistance: 12 ohms
•Recommended load impedance: 100 ohms (when head amplifier connected)
•Coil inductance: 26 H (1 kHz)
•Static compliance: 21 10⁻⁶ cm/dyne
•Dynamic compliance: 6 10⁻⁶ cm/dyne (100 Hz)
•Stylus: Nude Microlinear
•Stylus curvature radius: 2.2 0.12 mil
•Cantilever: Duralumin tapered pipe
•Vertical tracking angle: 19
•Dimensions: 16.1 mm (0.63) 16.6 mm (0.65) 26.1 mm (1.0) (H W D)
•Threaded hole: M2.6 2
•Weight: 10.1 g (0.36 oz)
Dimensions (Overall): 6.0 inches (H) x 3.0 inches (W) x 6.0 inches (D)
Weight: .5 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1006549022
UPC: 4961310164034
Origin: made in the USA or imported
