$139.00 when purchased online
Target Online store #3991
About this item
Highlights
- Dual moving magnet design is optimized for monaural sound reproduction, providing a highly focused "center" sound image
- Conical bonded stylus is designed for stable tracking performance and is less affected by placement
- Features a specialized body and internal wiring dedicated to reducing record noise
- Mono body terminates left and right channels, which helps in reducing surface noise
- The VM610MONO can accept other styli from the VM series, allowing for versatile use
Description

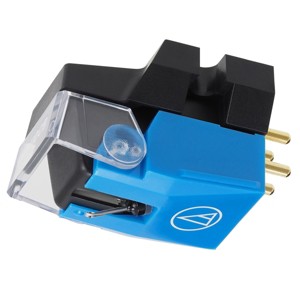

With a specialized body and internal wiring dedicated to monaural sound reproduction the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technicas new VM cartridge line a line that harks back to A-Ts early days as a manufacturer primarily of high-end phono cartridges the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused center sound image that stereo cartridges cant provide. Includes mounting hardware.
Features
•VM dual magnet cartridge with 0.6 mil conical stylus
•Aluminum cantilever
•Paratoroidal coils improve generating efficiency
•Mono body terminating left and right channels reduces surface noise
•Durable low-resonance polymer housing
What's in the Box
•VM610MONO Dual Moving Magnet Cartridge
•(4) Cartridge Installation Screws
•(2) Washers
•(2) Hexagon Nuts
Specifications
•Frequency response: 20 - 20000Hz
•Vertical tracking force: 1.8 - 2.2g (2.0g standard)
•Stylus construction: Bonded round shank
•Recommended load impedance: 47000 ohms
•Output: 3.0mV (at 1kHz 5cm/sec)
•Stylus shape: 0.6 mil conical
•Cantilever: Aluminum pipe
•Mount: Half-inch
•Replacement stylus: VMN10CB
•Coil impedance: 1400 ohms (1kHz)
•DC resistance: 400 ohms
•Load capacitance: 100 - 200pF
•Coil inductance: 230mH (1kHz)
•Static compliance: 35 x 10 - 6cm/dyne
•Dynamic compliance: 8 x 10 - 6cm/dyne (100Hz)
•Vertical tracking angle: 23
•Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
•Weight: 0.2 ounces
WARNING
: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Features
•VM dual magnet cartridge with 0.6 mil conical stylus
•Aluminum cantilever
•Paratoroidal coils improve generating efficiency
•Mono body terminating left and right channels reduces surface noise
•Durable low-resonance polymer housing
What's in the Box
•VM610MONO Dual Moving Magnet Cartridge
•(4) Cartridge Installation Screws
•(2) Washers
•(2) Hexagon Nuts
Specifications
•Frequency response: 20 - 20000Hz
•Vertical tracking force: 1.8 - 2.2g (2.0g standard)
•Stylus construction: Bonded round shank
•Recommended load impedance: 47000 ohms
•Output: 3.0mV (at 1kHz 5cm/sec)
•Stylus shape: 0.6 mil conical
•Cantilever: Aluminum pipe
•Mount: Half-inch
•Replacement stylus: VMN10CB
•Coil impedance: 1400 ohms (1kHz)
•DC resistance: 400 ohms
•Load capacitance: 100 - 200pF
•Coil inductance: 230mH (1kHz)
•Static compliance: 35 x 10 - 6cm/dyne
•Dynamic compliance: 8 x 10 - 6cm/dyne (100Hz)
•Vertical tracking angle: 23
•Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
•Weight: 0.2 ounces
WARNING
: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Dimensions (Overall): 2 inches (H) x 2 inches (W) x 4 inches (D)
Weight: .17 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1001268096
UPC: 4961310137601
Origin: made in the USA or imported
WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. www.p65warnings.ca.gov
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 3 inches length x 5 inches width x 2 inches height
Estimated ship weight: 0.2 pounds
This item cannot be shipped to the following locations: American Samoa (see also separate entry under AS), Guam (see also separate entry under GU), Northern Mariana Islands, Puerto Rico (see also separate entry under PR), United States Minor Outlying Islands, Virgin Islands, U.S., APO/FPO, Alaska, Hawaii
item ships from third party seller: WORLD WIDE STEREO
