About this item
Highlights
- Ideal for pro audio in both sealed and vented enclosures
- Great for full-range, mid/hi, and monitor wedges
- Easily handles 800W and frequencies from 52 Hz to 4. 5 kHz
- DELTA PRO-12A WORKS WELL IN BASS GUITAR CABINETS, MONITOR WEDGES & 2-WAY P.A. SYSTEMS
Description

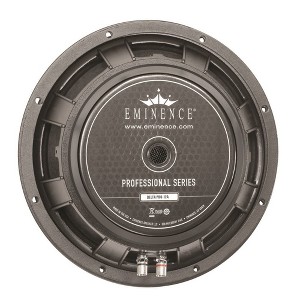

This table charts the specifications for the DELTA PRO-12A speaker * Nominal Basket Diameter: 12-in , 305 mm. * Nominal Impedance: 8 Ohms. * Power Rating: * Watts: 400 W. * Music Program: 800 W. * Resonance: 51 Hz. * Usable Frequency Range: 52 Hz - 4.5 kHz. * Sensitivity: 99.2 dB. * Magnet Weight: 80 oz.. * Gap Height: 0.375-in , 9.5 mm. * Voice Coil Diameter: 2.5-in , 64 mm. * Thiele & Small Parameters. * Resonant Frequency (fs): 51 Hz. * DC Resistance (Re): 5.71 Ohms. * Coil Inductance (Le): 0.84m H. * Mechanical Q (Qms): 7.56. * Electromagnetic Q (Qes): 0.37. * Total Q (Qts): 0.35. * Compliance Equivalent Volume (Vas): 81.7 liters / 2.89 cu.ft.. * Peak Diaphragm Displacement Volume (Vd): 242 cc. * Mechanical Compliance of Suspension (Cms): 0.21 mm/N. * BL Product (BL): 15.3 T-M. * Diaphragm Mass Inc. Airload (MMs): 48 grams. * Efficiency Bandwidth Product (EBP): 138. * Maximum Linear Excursion (Xmax): 4.6 mm. * Surface Area of Cone (Sd): 532.4 cm2. * Maximum Mechanical Limit (Xlim): 13.7 mm. ----------------------------------- Recommended Enclosure Volume; * Sealed: 28-35 liters / 1-1.25 cu.ft.. * Vented: 31-91 liters / 1.1-3.2 cu.ft.. * Driver Volume Displaced: 0.09 cu.ft. / 2.55 liters. * Overall Diameter: 12.38-in , 314.5 mm. * Baffle Hole Diameter: 11.07-in , 281.2 mm. * Front Sealing Gasket: Yes. * Rear Sealing Gasket: Yes. * Mounting Holes Diameter: 0.27-in , 6.9mm. * Mounting Holes B.C.D.: 11.69-in , 296.9mm. * Depth: 6.22-in , 158 mm. * Net Weight: 16.3 lbs, 7.39 kg. * Shipping Weight: 18 lbs, 8.16 kgs. * Materials of Construction. * Coil Construction: Aluminum voice coil. * Coil Former: Polyimide former. * Magnet Composition: Ferrite magnet. * Core Details: Vented & extended core. -----------------------------------. * Basket Materials: Die-cast aluminum basket. * Cone Composition: Paper cone. * Cone Edge Composition: Cloth cone edge. * Dust Cap Composition: Solid composition paper dust cap.
Dimensions (Overall): 6.5 inches (H) x 14 inches (W) x 13 inches (D)
Weight: 18 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
TCIN: 93303235
UPC: 876358000333
Origin: imported
