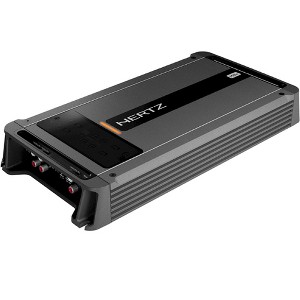

Hertz Mille Legend Series ML-Power-1 D-Class Mono Bass Amplifier 1000 WRMS x 1 at 2-Ohm

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The powerful mono Hertzaudio car amplifier ML Power 1 (1000 W – stable at 1 Ω) is perfect to drive the Mille subwoofers. The filters combination adopted for the Mille Power line is extremely flexible and ensures they can be used in any configuration. The active crossovers of MLPower 1 feature a 24 dB/Oct. adjustable slope Lo-Pass filter to adapt to every need. The control section, protected by a removable panel, can be accessed from the top for an effortless tuning. Power Supply - • Power supply voltage: 11÷15 VDC • Idling current: 2 A • Idling current when off: 0.04 mA • Consumption @ 1Ω, 14.4 VDC (Max Musical Power): 83.5 A Amplifier Stage - • Distorsion - THD (100 Hz @ 4Ω): 0.08 % • Bandwidth (-3 dB): 18 ÷ 500 Hz • S/N Ratio (A weighted @ 1 V): 105 dB • Damping factor (100 Hz @ 4Ω): 100 • Pre-In sensitivity: 0.2 ÷ 5 V RMS • Pre-In impedance: 15 kΩ • Speaker-In sensitivity: 0.8 ÷ 20 V RMS • Speaker-In impedance: 470 Ω
