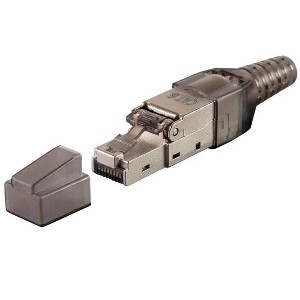

Monoprice Entegrade Series Cat6 RJ-45 Field Connection Modular Plug, Shielded for 23/24AWG Installation Cable, 10 pack
$74.98 sale price when purchased online
$93.28 list price
Target Online store #3991
About this item
Description
Cat6 Class Ea RJ45 Field Assembly Plug
UTP and FTP
Easy Assembly ‑ terminate in field in minutes without special tools
Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm
Transmission Characteristics: Cat6 per IS0/IEC 11801 Ed.2.2:2011‑06
Complies with class Ea to ISO/EIC 11801 Ed.2.2.2011‑06, DIN EN 50173‑1:2011‑09 10 Gbit
IEEE 802.3an
Supports Power over Ethernet (PoE, PoE plus, and UPoE)
Compatible with Cable Jacket Diameters from 6 to 9.5 mm
Adjustable Strain Relief (6mm to 9.5mm Cable outside diameter)
Load Bar for Faster and Easier Wire Pattern Termination
Operation temperature: ‑40 ~ +60°C
Relative humidity: 85% (30°C), Air pressure: 70‑106Kpa
Gold Plated Bronze Blade: bronze and gold plating (3‑50 µinch}, mating durability not less than 750 cycles
Made from Kirsite \ PC or PCB(UL94VO)
Intermediate resistance: no more than 20 megohm in normal atmospheric pressure (not including bulk resistor)
Insulated resistance: no less than 1,000 megohm in normal atmospheric pressure
1,000 VDC (700 VAC)
Retention strength: 7.7kg between jack and plug
TCIN: 1002719138
UPC: 889028100110
Origin: imported
