Multi-Function Precision with AC/DC Voltage DC Current Resistance Ohm Diode Buzzer mV and mA testing
Wide Application for industrial maintenance household electrical checks automotive troubleshooting and general electronics testing
Fast & Accurate Results with 1999 Counts Backlit LCD and quick 2 times/sec sampling rate
Maximum Safety & Durability via Double Ceramic Fuse and sturdy eco-friendly EVA construction
Pocket-Sized Portability with compact lightweight design and Stretchable Support Frame for hands-free viewing
Description

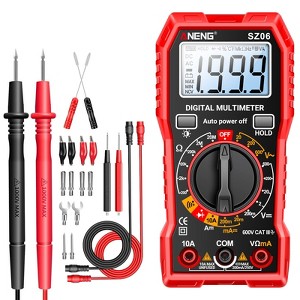

Features: Multi-Function Precision: Measures AC/DC Voltage, DC Current, Resistance (Ohm), Diodes, and Continuity (Buzzer). Also includes mV and mA testing for high versatility. Wide Application: Essential tool for industrial maintenance, household electrical checks (outlets, fuses), automotive troubleshooting (vehicle batteries, charging systems), and general electronics testing. Fast & Accurate Results: Features a 1999 Counts Backlit LCD and a quick sampling rate (2 times/sec) for precise troubleshooting and clear readings in any light condition. Maximum Safety & Durability: Equipped with Double Ceramic Fuse for superior overload protection. Sturdy, eco-friendly EVA construction protects against bumps and splashes, enhancing user safety. Pocket-Sized Portability: Compact and lightweight design fits easily in a pocket or tool bag. Includes a Stretchable Support Frame on the back for convenient hands-free viewing and one-handed operation.
Specifications: Maximum voltage between terminals and earth ground : 600VDC or 600VAC Fuse protection:F 250mA/250V Power:1.5V AAA*2(not include) Product Material:ABS material Total length of pen line:68 cm Display:LCD, 1999 counts, updates 2-3/sec. Measuring method:Dual-slope integration A/D converter Overrange Indication:Only figure "1" on the display Poladty indication:“-" displayed for negative polarity Operating Environment:0 to 40℃ Storage temperature:-10°C to 50°C Low battery indication: appears on the display Size:31.5X91X189mm Weight:Approx. 280g
DC voltage:200mV~600V/0.1mV~1V/±(1.0%+5) AC voltage:20V~600V/0.01V~1V/±(1.0%+5) DC current:20mA~10A/0.01mA~0.01A/±(1.5%+5) Resistance/0Ω~20MΩ/0.1Ω~0.01MΩ/±(1.2%+5) Milliampere DC current:20mA~200mA/0.01mA~0.01A/±(1.5%+5) On/Off Beep:yes Maintain data:yes Automatic shutdown:yes Equipped with support frame:yes Diode:yes Backlit screen:yes Safety tube:yes
Packing list: 1 x Digital Multimeter 4 x Connection Sockets 2 x PVC Cables 2 x Copper Pins 2 x U-Shaped Plugs 2 x Meter Pens 4 x Alligator Clips 2 x Puncture Needles 2 x Test Leads 1 x Instruction Manual
Dimensions (Overall): 1.46 inches (H) x 2.62 inches (W) x 5.21 inches (D)
Weight: .61 pounds
Material: ABS (Acrylonitrile Butadiene Styrene)
TCIN: 1009321940
UPC: 774304229671
Origin: imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 5.79 inches length x 3.94 inches width x 1.57 inches height
Estimated ship weight: 0.55 pounds
This item cannot be shipped to the following locations: American Samoa (see also separate entry under AS), Guam (see also separate entry under GU), Northern Mariana Islands, Puerto Rico (see also separate entry under PR), United States Minor Outlying Islands, Virgin Islands, U.S., APO/FPO, Alaska, Hawaii
item ships from third party seller: Aghana Digitals Inc
