VEVOR Z-Axis Power Feed for Milling Machine, 450 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, White
$158.99 when purchased online
Target Online store #3991
About this item
Highlights
- Fits most 5/8" shaft knee mills like Bridgeport and Jet.
- Variable speed up to 200 RPM for precise control.
- Spiral bevel gears ensure quiet, efficient power transfer.
- Supports Z-axis motion with manual or auto operation modes.
Description
Feature:
Ultimate High-Compatibility Solution: Our power feed table mill Includes everything needed to mount on most knee-type mills with a 5/8'' end shaft diameter that shares the same installation pattern, such as Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, and others.
Infinitely Variable Speed Control: With the continuously variable speed knob, you can adjust the speed according to your needs. Our milling machine power feed offers a rated torque of 450 in-lb(50.7 NM), a maximum speed of 200 RPM, a maximum feed rate of 965 mm/min, and a maximum return speed of 1385 mm/min.
Highly Stable and Efficient: Featuring Gleason spiral bevel gears, our power table feed boasts stable transmission ratios, low noise, high transmission efficiency, and high load-bearing capacity. Plus, it comes with a special security device that protects the gearbox plastic gears, and electronic components from damage in the event of tool collision or sudden reversal during rapid transmission.
Easy to Use, Manual or Automatic: Our power feed milling machine offers two different speed adjustment modes: manual and automatic. With manual control buttons, you can adjust the speed as needed. Alternatively, set the device to automatic constant speed mode for hands-free operation, making your milling tasks a breeze.
Designed for Z-axis Direction: This power feed woodworking enables smooth movement in the Z-axis direction. Its versatility extends to various machines, including radial milling machines, drilling and boring machines, small grinding machines, and specialized machine tools, ensuring stable power delivery across a wide range of equipment.

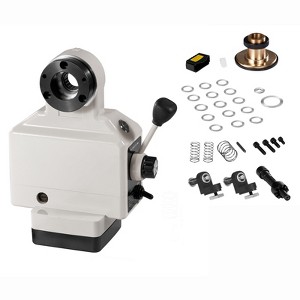

Package Content
1 x Copper Gear
1 x Install the Retainer Plate
2 x Limit Blocks
4 x Fixing Screws
1 x Limit Switch Waterproof Box
2 x Limit Switch Springs
15 x Adjusting Shims
1 x Extended Shaft
11 x Extended Shaft Springs
1 x Copper Gear Gasket
1 x Flat Key
1 x User Manual
Ultimate High-Compatibility Solution: Our power feed table mill Includes everything needed to mount on most knee-type mills with a 5/8'' end shaft diameter that shares the same installation pattern, such as Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, and others.
Infinitely Variable Speed Control: With the continuously variable speed knob, you can adjust the speed according to your needs. Our milling machine power feed offers a rated torque of 450 in-lb(50.7 NM), a maximum speed of 200 RPM, a maximum feed rate of 965 mm/min, and a maximum return speed of 1385 mm/min.
Highly Stable and Efficient: Featuring Gleason spiral bevel gears, our power table feed boasts stable transmission ratios, low noise, high transmission efficiency, and high load-bearing capacity. Plus, it comes with a special security device that protects the gearbox plastic gears, and electronic components from damage in the event of tool collision or sudden reversal during rapid transmission.
Easy to Use, Manual or Automatic: Our power feed milling machine offers two different speed adjustment modes: manual and automatic. With manual control buttons, you can adjust the speed as needed. Alternatively, set the device to automatic constant speed mode for hands-free operation, making your milling tasks a breeze.
Designed for Z-axis Direction: This power feed woodworking enables smooth movement in the Z-axis direction. Its versatility extends to various machines, including radial milling machines, drilling and boring machines, small grinding machines, and specialized machine tools, ensuring stable power delivery across a wide range of equipment.
Package Content
1 x Copper Gear
1 x Install the Retainer Plate
2 x Limit Blocks
4 x Fixing Screws
1 x Limit Switch Waterproof Box
2 x Limit Switch Springs
15 x Adjusting Shims
1 x Extended Shaft
11 x Extended Shaft Springs
1 x Copper Gear Gasket
1 x Flat Key
1 x User Manual
Dimensions (Overall): 4.72 inches (H) x 8.27 inches (W) x 9.45 inches (D)
Weight: 12.57 pounds
Product Name: Z-Axis Power Feed for Milling Machine
TCIN: 1004372913
UPC: 198950214001
Origin: imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 15.35 inches length x 13.39 inches width x 7.48 inches height
Estimated ship weight: 13.01 pounds
