About this item
Highlights
- Microlinear stylus delivers low-distortion, high-range performance, even on the inner grooves of records
- Tapered boron cantilever reduces weight and enhances audio quality, particularly in higher frequencies
- Neodymium Magnet and Permendur Yoke enhances magnetic energy for better sound reproduction
- Dual Moving Coils provide excellent channel separation and reduces unwanted vibration
- Precision-cast aluminum alloy body enhances rigidity and improves the signal-to-noise ratio
Description

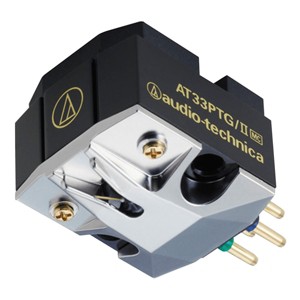

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that with its small curvature radius delivers low-distortion high-range performance even when playing the inner circumference of a record. The Microlinear stylus which has an average life span of around 1000 hours is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.
Features
•Microlinear Stylus Delivers Exquisite Full-Range Audio Reproduction
•Strong Rigid Housing Limits Unnecessary Vibration
•High-Separation Wide-Response Dual Moving Coil
DesignThe cartridges two coils provide excellent channel separation and are affixed within a strong lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.
What's in the Box
•AT33PTG/2 Dual Moving Coil Cartridge
•Installation Hardware
Specifications
•Frequency Response: 15-50000 Hz
•Channel Separation: 30 dB (1 kHz)
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Recommended Load Impedance: More than 100 ohms (when head amplifier is connected)
•Coil Impedance: 10 ohms (1 kHz)
•DC Resistance: 10 ohms
•Coil Inductance: 22 H (1 kHz)
•Output Voltage: 0.3 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 0.5 dB (1 kHz)
•Stylus Shape: Microlinear
•Cantilever: Gold-plated nude tapered boron
•Static Compliance: 40 x 10-6 cm/dyne
•Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
Features
•Microlinear Stylus Delivers Exquisite Full-Range Audio Reproduction
•Strong Rigid Housing Limits Unnecessary Vibration
•High-Separation Wide-Response Dual Moving Coil
DesignThe cartridges two coils provide excellent channel separation and are affixed within a strong lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.
What's in the Box
•AT33PTG/2 Dual Moving Coil Cartridge
•Installation Hardware
Specifications
•Frequency Response: 15-50000 Hz
•Channel Separation: 30 dB (1 kHz)
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Recommended Load Impedance: More than 100 ohms (when head amplifier is connected)
•Coil Impedance: 10 ohms (1 kHz)
•DC Resistance: 10 ohms
•Coil Inductance: 22 H (1 kHz)
•Output Voltage: 0.3 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 0.5 dB (1 kHz)
•Stylus Shape: Microlinear
•Cantilever: Gold-plated nude tapered boron
•Static Compliance: 40 x 10-6 cm/dyne
•Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
Dimensions (Overall): 3 inches (H) x 3 inches (W) x 2 inches (D)
Weight: 1.0 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1001268110
UPC: 4961310111182
Origin: made in the USA or imported
