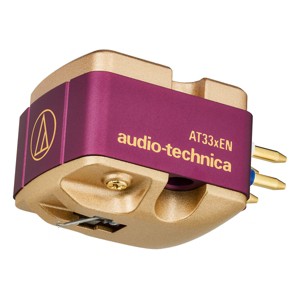

Audio-Technica AT33xEN Dual Moving Coil Stereo Cartridge
New at target
$699.00
In Stock
Eligible for registries and wish lists
Sponsored
About this item
Highlights
- AT33x Series dual moving coil cartridge with elliptical nude stylus for accurate playback
- Warm, full sound with excellent channel separation and smooth signal transmission
- Neodymium magnet, permendur yoke, and PCOCC coils boost efficiency and resolution
- Composite body with zinc base reduces resonance and vibration for balanced sound
- Threaded mounting holes and duralumin cantilever improve usability and high-frequency control
Description
The AT33xEN is a versatile cartridge that delivers warm full-bodied audio with excellent tracking and high-frequency control thanks to its 0.3 x 0.7 mil elliptical nude stylus on a duralumin tapered cantilever. Its advanced suspension system with piano wire enhances accuracy and mid-low range response while the composite body of zinc aluminum and high-rigidity polymer reduces resonance for balanced natural sound. The dual moving coil design with PCOCC coils ensures outstanding channel separation and smooth signal transmission supported by a neodymium magnet and permendur yoke for high efficiency and resolution.
Features
•Dual Moving Coil Cartridge with Elliptical Nude Stylus
•PCOCC Coils Ensure Smooth Signal Transmission
•Composite Body Reduces Resonance for Balanced Sound
Material DifferenceThe AT33xENs rigid duralumin pipe cantilever which tapers toward the elliptical stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilevers fulcrum to ensure pure signal transmission for each channel.
Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials die-cast zinc aluminum and high-rigidity polymer optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.
What's in the Box
•AT33xEN Dual Moving Coil Stereo Cartridge
•Installation Kit
•Manual
Specifications
•Type: MC
•Frequency Response: 20 to 40000 Hz
•Output Voltage: 0.4 mV (1 kHz 5 cm/sec.)
•Channel Separation: 27 dB (1 kHz)
•Output Balance: 1.0 dB (1 kHz)
•Tracking Force: 1.8 to 2.2 g (2.0 g standard)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Recommended Load Impedance: 100 ohms (when head amplifier connected)
•Coil Inductance: 26 H (1 kHz)
•Static Compliance: 21 10⁻⁶ cm/dyne
•Dynamic Compliance: 6 10⁻⁶ cm/dyne (100 Hz)
•Stylus: Nude Elliptical
•Stylus Curvature Radius: 0.3 0.7 mil
•Cantilever: Duralumin tapered pipe
•Vertical Tracking Angle: 19
•Dimensions (H W D): 16.1 mm (0.63) 16.6 mm (0.65) 26.1 mm (1.0)
•Threaded Hole: M2.6 2
•Weight: 10.1 g (0.36 oz)
Features
•Dual Moving Coil Cartridge with Elliptical Nude Stylus
•PCOCC Coils Ensure Smooth Signal Transmission
•Composite Body Reduces Resonance for Balanced Sound
Material DifferenceThe AT33xENs rigid duralumin pipe cantilever which tapers toward the elliptical stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilevers fulcrum to ensure pure signal transmission for each channel.
Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials die-cast zinc aluminum and high-rigidity polymer optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.
What's in the Box
•AT33xEN Dual Moving Coil Stereo Cartridge
•Installation Kit
•Manual
Specifications
•Type: MC
•Frequency Response: 20 to 40000 Hz
•Output Voltage: 0.4 mV (1 kHz 5 cm/sec.)
•Channel Separation: 27 dB (1 kHz)
•Output Balance: 1.0 dB (1 kHz)
•Tracking Force: 1.8 to 2.2 g (2.0 g standard)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Recommended Load Impedance: 100 ohms (when head amplifier connected)
•Coil Inductance: 26 H (1 kHz)
•Static Compliance: 21 10⁻⁶ cm/dyne
•Dynamic Compliance: 6 10⁻⁶ cm/dyne (100 Hz)
•Stylus: Nude Elliptical
•Stylus Curvature Radius: 0.3 0.7 mil
•Cantilever: Duralumin tapered pipe
•Vertical Tracking Angle: 19
•Dimensions (H W D): 16.1 mm (0.63) 16.6 mm (0.65) 26.1 mm (1.0)
•Threaded Hole: M2.6 2
•Weight: 10.1 g (0.36 oz)
Dimensions (Overall): 6.0 inches (H) x 3.0 inches (W) x 6.0 inches (D)
Weight: .5 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1006549024
UPC: 4961310164041
Origin: made in the USA or imported
