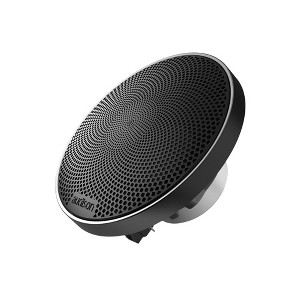

Audison AV 3.0 II Set 3 inch (70mm) Midrange, built-in copper shorting rings and grilles
New at target
$999.99
In Stock
Eligible for registries and wish lists
Sponsored
About this item
Highlights
- FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
- Oversized Neodymium Magnet: Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
- Magnetic Circuit Geometry Optimized with FEM: Maximizes efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
- Semi-Pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for clean, undistorted midrange reproduction with a wide frequency response, enhancing sound clarity.
- CCAW Voice Coil (Copper-Clad Aluminum Wire): the 1” (26 mm) CCAW (Copper-Clad Aluminum) voice coil optimizes magnetic force and heat dissipation, allowing for high power handling and detailed midrange reproduction, even at high volumes.
Description
The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.
Give Sound Its True Voice
Audison Voce II, the second generation of our iconic VOCE speakers, challenged us—to rethink how we design, test, and manufacture speakers. We’ve revamped materials, supply chains, assembly techniques, and packaging. Our goal was to “unlearn” to innovate and to “reinforce our expertise” where we knew we were on the right track. This dedication ensures that every aspect of VOCE II not only meets but exceeds the sophisticated demands of today’s car audio enthusiasts.
Specifications
Technical Specs
Nominal diameter: 70 mm (3 in)
Minimum Impedance: 3.2 Ohm
Power Handling - Peak: 100 W
Power Handling - Continuous: 50 W
Sensitivity: 90 dB
Frequency Response: 160 ÷ 13000 Hz
Voice Coil Ø: 26 mm
Chassis Material: ALUMINIUM
Magnet Material: NEODYMIUM
Magnet size D x d x h: 24.9-6 mm
Voice Coil Material: CCAW
Former Material: GLASS FIBER
Cone Material: SEMI-PRESSED PAPER
Surround Material: RUBBER
Xmax: 1.4 mm (0.06 in)
Xmech: 3.2 mm (0.13 in)
Voice Coil Winding Height: 5.3 mm (0.21 in)
Gap Height: 4.5 mm (0.18 in)
Crossover name: no
Electric-acoustic Specs
D: 35.6 cm² (5.518 in²)
Re: 2.9 Ohm
Fs: 150 Hz
Le: 0.1 mH
Vas: 0.61 l (0.022 ft)
Mms: 2.9 g (0.102 oz)
Cms: 0.39 mm/N
BL: 3.5 T•m
Qts: 0.58
Qes: 0.65
Qms: 5.45
Flux Density: 0.78
General
Weight: 0.15 kg
Dimensions
Width: 84 mm (3.31 in)
Length: 84 mm (3.31 in)
Depth: 35 mm (1.38 in)
Mounting Depth: 31.2 mm (1.23 in)
Hole diameter: 3.5 mm
Dimensions (Overall): 18.0 inches (H) x 8.0 inches (W) x 14.0 inches (D)
Weight: 10.0 pounds
