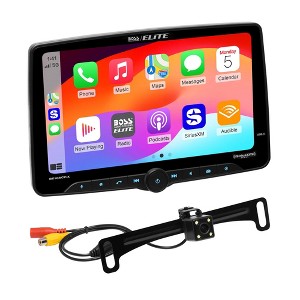

Boss BE10ACP.XC Single-DIN, Wired Apple CarPlay & Android Auto, SXM, Mech-less Multimedia Player (no CD/DVD) 10.1" Touchscreen Bluetooth + Rear-Vie...
$419.99 when purchased online
Target Online store #3991
About this item
Highlights
- 10.1” Capacitive Touchscreen
- Certified Apple CarPlay® & Android Auto™ (Wired)
- SiriusXM-Ready®
- Single-DIN Fit ( Double-DIN Adapter Brackets Included )
- Built-In DSP with 13-Band EQ, Crossover Settings and Time Alignment
Description
General
Input voltage: 8.5 – 18 VDC, 14.4 VDC (Nominal)
Current consumption: Max. 15 A
Fuse: 15 A (ATO, blade)
Mounting hole (H x W): 1.97" x 7.01"
Mounting depth: 5.93"
Unit weight: 4.26 lbs
Operational temperature: -4 – 140°F
Display
Screen size: 10.1"
Aspect ration: 16.9
Resolution: 1024 x 600
Screen type: TFT-LED active matrix
Audio
Max power: 85 W x 4
Speaker impedance : 4 – 8 Ω
Preset EQ: Jazz, HipHop, Pop, Rock, R&B
EQ bands (Adjustable): 32/63/125/250/500 Hz, 1/2/4/8/10/12/14/16 kHz
EQ boost/cut : ±6 dB
High pass filter (HPF): 20/60/80/160/250 Hz
Low pass filter (LPF): 2/8/10/16/20 kHz
HPF/LPF slope: -6/-12/-18 dB
Sub filter: 50/80/120/160 Hz
Sub level: +1 to +14 dB
Pre-amp output: 2x Front (4V, full range)
2x Rear (4V, full range)
2x Sub (mono, 4V, LPF)
Audio input: 2x RCA, 1 Vp-p/75 Ω
Video
Signal system: NTSC/PAL
Video input (RCA): 1x RCA, 1 Vp-p/75 Ω
Radio
Frequency range: 87.5 – 108 MHz (FM)
522 – 1710 kHz (AM)
Frequency step (FM): 200 kHz (USA)
100 kHz (Latam)
50 kHz (Europe)
RDS/RBDS: RT data, TA, AF
Apple CarPlay
Device support: iPhone 5 or later
iOS: iOS 7.1 or later
Android Auto
Android: 6.0 or later
USB
Front USB port: USB-C Media/Charging (1.5A)
Rear USB port: USB-A (2.0, High Speed) CarPlay/Android Auto Charging (1.5A)
Supported USB device: Max. 32GB
File system: FAT32
Audio playback: MP3, WMA, WAV, FLAC (192kHz/24bit)
Video playback: AVI, MKV, WMV
Picture playback: JPG, PNG, BMP
Note: Not all listed media files are guaranteed to play due to different creation methods or file contents.
Bluetooth
Bluetooth version: V5.2 + EDR
Transmission range: 33ft/10m (line of sight)
Bluetooth profiles: A2DP, AVRCP, HFP, PBAP, HSP, HID, GATT, SPP
Dimensions (Overall): 18.0 inches (H) x 8.0 inches (W) x 14.0 inches (D)
Weight: 10.0 pounds
Electronics Condition: New
Wireless Technology: Bluetooth
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003525881
UPC: 791489134309
Origin: made in the USA or imported
