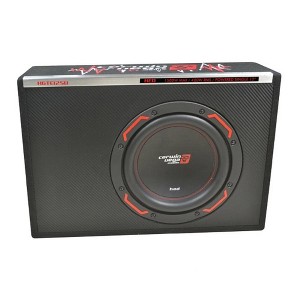

Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure

Description: The HED POWERED ACTIVE SLIM LINE ENCLOSURES blend modern aesthetics with optimal bass performance in a package suited for all vehicle applications. A favorite of the pick-up truck and sport utility vehicle crowd, these powered active slim line enclosures provide tremendous value for its performance. Specifications 12" Vented Subwoofer Enclosure with Built-In Amplifier Power Handling: 150W RMS/300W MAX THD: <0.4% Signal To Noise Ratio: >90dB Frequency Response: 30Hz-150Hz Input Sensitivity (Hi/Lo): 0.2V-20V Low Pass Filter: 85Hz-150HZ Bass Boost: 0dB-12bB Subsonic Filter: 30Hz Fuse Rating: 25A Impedance: 2Ω Dimensions (LxWxH): 30"x7.7"x16" (762mm x 195mm x 406.4mm) FEATURES POWER STATUS LED: This bi-color LED glows green when power is on and no problems are present. If one of the protection circuits comes on, it will change to red. AUTO TURN ON: The AUTO TURN ON circuit is for high level (speaker-level) connections. When the switch is in the “REM” position, you MUST use a solid 12 volts to switch on. If you have no hard switched 12 volts (like the ignition key or an aftermarket radio switch 12V output) then use either the VOX (signal sensing) or DC offset (looks at the difference between power and signal ground). VARIABLE PHASE: 0-180 degrees of adjustment to help compensate for time alignment problems in the system. Such problems usually result from having the subwoofer at a different distance from the listener than the other speakers in the system. This will effectively “move” the sound of the subwoofer forward in the vehicle. This takes 2 people to adjust.
