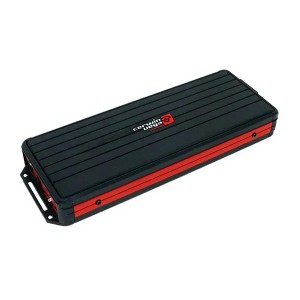

Cerwin Vega VCU86 Vega Series 6‑Channel Class‑D Amplifier – 100W x 6 @ 4Ω, 150W x 6 @ 2Ω RMS – Full‑Range Compact Amp with Water‑Resistant Design
$529.99 when purchased online
Target Online store #3991
About this item
Highlights
- Powerful, Compact 6‑Channel Performance – Delivers up to 150 W RMS × 6 at 2 Ω (100 W × 6 at 4 Ω), and bridges to 300 W × 3—perfect for full-range systems and active sub setups
- Efficiency-Driven Class D with IR Chipset – Advanced full-range digital topology keeps output clean and cool, featuring a high-efficiency IR power chipset and conformal-coated 4-layer PCB
- Built for Durability on the Go – Water-resistant design and conformal PCB coating protect against moisture and road vibrations—ideal for marine, powersports, or high-duty-cycle installs
- Versatile Input & Filter Options – Accepts both high- and low-level inputs up to 12 V, includes variable HP/LP filters and subsonic, plus boosted RFI rejection for clean signal integrity
- Pro-Grade Integration & Thermal Control – Features remote turn-on configurator (REM/DC/VOX), thermal/overload protection, and a sleek heatsink design for efficient cooling and a consistent, professional look
Description
The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.
Innovation Meets Power
Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.
Engineered for Durability
Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.
Specifications
POWER RATING
RMS Power (2Ω): 150W x 6
RMS Power (4Ω): 100W x 6
Bridged (Mono 4Ω): 300W X 3
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
DISTORTION
THD 4 (1KHz @4Ω): 0.05%
S/N Ratio (A weighted @1W): -85 dBA
S/N Ratio (A weighted @FP): -101.1 dBA
INPUT SENSITIVITY
Low Input Level: 200mV-10.0V
High Input Level: 200mV-10.0V
INPUT IMPEDANCE
Low Input Level: 20 KΩ
High Input Level: 20 KΩ
OUTPUT STAGE
Output Impedance: 0.018Ω
Damping Factor (50Hz @ 4Ω): >250
Bandwidth (-3dB): 10Hz-35KHz
CROSSOVER (-12/-24 dB/Oct)
Variable High-Pass: Flat or Fixed 70Hz
Variable Low-Pass: 40Hz-400Hz
FUSE RATINGS
ATC: 60A
DIMENSIONS
L x W x H: 11.24”x 4.02”x 1.4” (285.6mm x 102mm x 36mm)
FEATURES
Full Range Class D IR Chipset
DirectFET Power Mosfet Output Stage
SMD Technology on 4-Layer PCB Board
Water Resistant Conformal PCB Board Coating
1-year Manufacturer's Warranty
Dimensions (Overall): 18.0 inches (H) x 8.0 inches (W) x 14.0 inches (D)
Weight: 10.0 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003299813
UPC: 847169063541
Origin: made in the USA or imported
