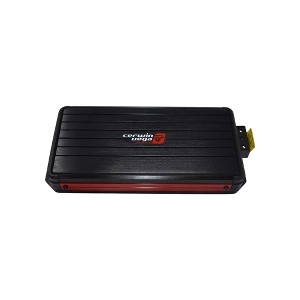

Cerwin-Vega VCU82 - Vega 2-Channel Amplifier / 300Wx2@2-Ohm, 200Wx2@4-Ohm, 600Wx1@4-Ohm Rms Bridged Vega Compact Universal W/Remote
$349.99 when purchased online
Target Online store #3991
About this item
Highlights
- Experience exceptional sound clarity with maximum energy efficiency.
- Engineered for stability and precision, ensuring consistent performance under any condition.
- Protected against moisture and environmental wear for long-lasting reliability.
- Built to withstand the rigors of the road, wherever your journey takes you.
- Simplifies integration with any audio system.
Description
The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.
Specifications
POWER RATING
RMS Power (2Ω): 250W x 2
RMS Power (4Ω): 150W x 2
Bridged (Mono 4Ω): 500W x 1
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
DISTORTION
THD 4 (1KHz @4Ω): 0.05%
S/N Ratio (A weighted @1W): -85 dBA
S/N Ratio (A weighted @FP): -101.1 dBA
INPUT SENSITIVITY
Low Input Level: 200mV-10.0V
High Input Level: 200mV-10.0V
INPUT IMPEDANCE
Low Input Level: 20 KΩ
High Input Level: 20 KΩ
OUTPUT STAGE
Output Impedance: 0.0297Ω
Damping Factor (50Hz @ 4Ω): >250
Bandwidth (-3dB): 10Hz-35KHz
CROSSOVER (-12/-24 dB/Oct)
Variable High-Pass: 40Hz-400Hz
Variable Low-Pass: 40Hz-400Hz
FUSE RATINGS
ATC: 25A
DIMENSIONS
L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm)
FEATURES
Full Range Class D IR Chipset
DirectFET Power Mosfet Output Stage
SMD Technology on 4-Layer PCB Board
Water Resistant Conformal PCB Board Coating
1-year Manufacturer's Warranty
Marine Grade Certified
RMS Power Handling:
300W x 2 @ 2 Ohms
200W x 2 @ 4 Ohms
Bridged: 600W x 1 @ 4 Ohms
High-Power Full-Range Digital Class D Advanced Technology IR Chipset
Surface Mount Component Technology
Conformal-Coated IPX Certified 4-Layer Black PCB
Remote REM/DC/VOX Turn On Trigger
Variable/Switchable Crossovers On Multi-Channel Models
Uniform Heatsink Chassis Size/Dimensions
Compact Universal All-Weather Application
Remote Level Control Included
Dimensions (Overall): 18.0 inches (H) x 8.0 inches (W) x 14.0 inches (D)
Weight: 10.0 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003386519
UPC: 847169044526
Origin: made in the USA or imported
