$2299.00 when purchased online
Target Online store #3991
About this item
Highlights
- Advanced AL32 Processing Plus supports high resolution 384 kHz/32-bit audio sources
- Integrated amplifier offers compatibility with the widest range of speaker types and impedances
- Able to decode high-resolution audio ALAC, FLAC, and WAV lossless files up to 24-bit/192 kHz
- Built-in phono equalizer allows direct connection to a turntable and supports input from MM cartridges
- Features both optical and coaxial digital inputs supporting PCM signals to improve the sound quality
Description

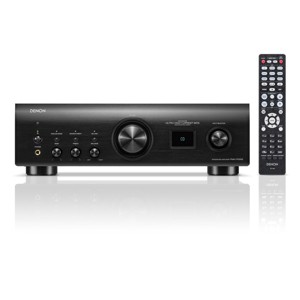

Featuring advanced ultra-high current single push-pull circuit power Advanced AL32 Processing and MM/MC phono equalizer the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.
High-power 140W integrated amplifier Drive your loudspeakers with 140 Watts of power per channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC To accurately synchronize digital circuits the PMA-1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controls The PMA-1700NE embraces electrical volume balance and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth linear control.
MM and MC phono equalizer The PMA-1700NE includes a phono equalizer that supports input from both MM and MC cartridges. The simple straightforward design significantly improves sound quality.
Optical and coaxial digital inputs The PMA-1700NE features two optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24 bit.
External pre-amp input terminals EXT/PRE input terminals are fixed gain inputs that can be used for connecting an external pre-amp using the PMA-1700NE as a power amp.
TV auto standby (digital input) The PMA-1700NE includes autosensing to automatically switch the unit on when it senses a digital audio signal from an external source like your TV.
Six-block chassis configuration and direct mechanical ground construction Constructed with 1mm-thick steel plates and made of ABS resin with rigid rib construction the chassis protects the signal circuits from external vibration and eliminates adverse effects of mutual interference among the circuits.
Digital isolator Equipped with a high-speed digital isolator the PMA-1700NE eliminates adverse effects on sound quality caused by high-frequency noise from a USB-connected computer or digital inputs.
Analog mode Analog mode can be used to turn off power to digital power sources and completely stop the operation of the digital input circuitry avoiding any high-frequency influence on the analog section.
What's in the Box
•Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel
•Owner's Manual
•Quick Start Guide
•Remote Controller
•Battery (AAA x2)
•Power Cord
Specifications
•General
•Dimensions (W x D x H) : 17.1 x 5.3 x 16.1
•Net weight: 38.8 lb
•Material: Aluminum
•Audio Specifications
•Rated Output Power
•70W + 70W (8ohm20Hz-20kHzTHD0.07%)
•140W + 140W (4ohm 1kHz THD0.7%)
•Speaker Impedance
•A or B : 4 ~ 16ohm
•A + B : 8 ~ 16ohm
•Frequency Response: 5Hz - 100kHz (0~ -3dB)
•Total Harmonic Distortion: 0.01 % (Rated output: 3 dB) 8 ohm/ohms 1 kHz
•Dumping Factor: 100 and over
•Input Sensitivity: Phono input
•MM: 2.5 mV / 47 kohm
•MC: 200
•RIAA Deviation: 20 Hz - 20 kHz 0.5 d
High-power 140W integrated amplifier Drive your loudspeakers with 140 Watts of power per channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC To accurately synchronize digital circuits the PMA-1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controls The PMA-1700NE embraces electrical volume balance and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth linear control.
MM and MC phono equalizer The PMA-1700NE includes a phono equalizer that supports input from both MM and MC cartridges. The simple straightforward design significantly improves sound quality.
Optical and coaxial digital inputs The PMA-1700NE features two optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24 bit.
External pre-amp input terminals EXT/PRE input terminals are fixed gain inputs that can be used for connecting an external pre-amp using the PMA-1700NE as a power amp.
TV auto standby (digital input) The PMA-1700NE includes autosensing to automatically switch the unit on when it senses a digital audio signal from an external source like your TV.
Six-block chassis configuration and direct mechanical ground construction Constructed with 1mm-thick steel plates and made of ABS resin with rigid rib construction the chassis protects the signal circuits from external vibration and eliminates adverse effects of mutual interference among the circuits.
Digital isolator Equipped with a high-speed digital isolator the PMA-1700NE eliminates adverse effects on sound quality caused by high-frequency noise from a USB-connected computer or digital inputs.
Analog mode Analog mode can be used to turn off power to digital power sources and completely stop the operation of the digital input circuitry avoiding any high-frequency influence on the analog section.
What's in the Box
•Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel
•Owner's Manual
•Quick Start Guide
•Remote Controller
•Battery (AAA x2)
•Power Cord
Specifications
•General
•Dimensions (W x D x H) : 17.1 x 5.3 x 16.1
•Net weight: 38.8 lb
•Material: Aluminum
•Audio Specifications
•Rated Output Power
•70W + 70W (8ohm20Hz-20kHzTHD0.07%)
•140W + 140W (4ohm 1kHz THD0.7%)
•Speaker Impedance
•A or B : 4 ~ 16ohm
•A + B : 8 ~ 16ohm
•Frequency Response: 5Hz - 100kHz (0~ -3dB)
•Total Harmonic Distortion: 0.01 % (Rated output: 3 dB) 8 ohm/ohms 1 kHz
•Dumping Factor: 100 and over
•Input Sensitivity: Phono input
•MM: 2.5 mV / 47 kohm
•MC: 200
•RIAA Deviation: 20 Hz - 20 kHz 0.5 d
Dimensions (Overall): 5.3 inches (H) x 15.2 inches (W) x 17.1 inches (D)
Weight: 22.7 pounds
Electronics Condition: New
Number of channels: 1 speaker channels
Number of audio inputs: 1
Battery: 2 AAA Alkaline, Required, Included
Warranty: 2 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 87249458
UPC: 747192137632
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 16 inches length x 20 inches width x 8 inches height
Estimated ship weight: 40 pounds
