$169.98 when purchased online
Target Online store #3991
About this item
Highlights

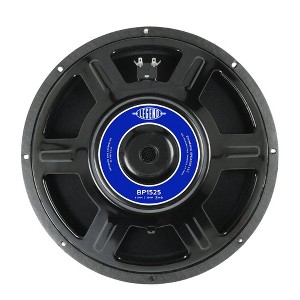

- A 15" bass guitar driver that delivers warm, rich tone and deep bass
- This 350 watt driver is at home in small sealed enclosures
- Also works well in pro audio and home Hi-Fi applications
- 350 Watts at 8 Ohms
Description
This table charts the specifications for the Legend_BP1525 speaker * Nominal Basket Diameter: 15-in , 381 mm. * Nominal Impedance*: 8 Ohms. * Power Rating*. * Program Power: 700 W. * Watts: 350 W. * Resonance: 32 Hz. * Usable Frequency Range: 35 Hz - 2.1 kHz. * Sensitivity*: 96.6 dB. * Magnet Weight: 56 oz.. * Gap Height: 0.31-in , 7.9 mm. * Voice Coil Diameter: 2.5-in , 64 mm. * Thiele & Small Parameters. * Resonant Frequency (fs): 32 Hz. * DC Resistance (Re): 6.65 Ohms. * Coil Inductance (Le): 1.12m H. * Mechanical Q (Qms): 11.21. * Electromagnetic Q (Qes): 0.5. * Total Q (Qts): 0.48. * Compliance Equivalent Volume (Vas): 397 liters / 14.02 cu.ft.. * Peak Diaphragm Displacement Volume (Vd): 530.9 cc. * Mechanical Compliance of Suspension (Cms): 0.39 mm/N. * BL Product (BL): 13.07 T-M. * Diaphragm Mass Inc. Airload (MMs): 65 grams. * Efficiency Bandwidth Product (EBP): 63. * Maximum Linear Excursion (Xmax): 6.2 mm. * Surface Area of Cone (Sd): 856.3 cm2. * Maximum Mechanical Limit (Xlim): 14.3 mm. ----------------------------------- Recommended Enclosure Volume; * Sealed: Acceptable. * Vented: Acceptable. * Driver Volume Displaced: 0.128 cu.ft. / 3.62 liters. * Overall Diameter: 15.15-in , 384.8 mm. * Baffle Hole Diameter: 13.9-in , 353.1 mm. * Front Sealing Gasket: Yes. * Rear Sealing Gasket: Yes. * Mounting Holes Diameter: 0.25-in , 6.4mm. * Mounting Holes B.C.D.: 14.56-in , 369.8mm. * Depth: 6.61-in , 168 mm. * Net Weight: 12 lbs, 5.44 kg. * Shipping Weight: 14 lbs, 6.35 kgs. * Materials of Construction. * Coil Construction: Copper voice coil. * Coil Former: Polyimide former. * Magnet Composition: Ferrite magnet. * Core Details: Vented and extended core. -----------------------------------. * Basket Materials: Pressed Steel basket. * Cone Composition: Paper cone. * Cone Edge Composition: Cloth cone edge. * Dust Cap Composition: Solid composition felt dust cap.
Dimensions (Overall): 7.25 inches (H) x 16 inches (W) x 16 inches (D)
Weight: 14.51 pounds
Electronics Condition: New
Package Quantity: 1
Warranty: 10 Day Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 93163785
UPC: 876358003754
Origin: imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 17 inches length x 17 inches width x 8.25 inches height
Estimated ship weight: 15.5 pounds
