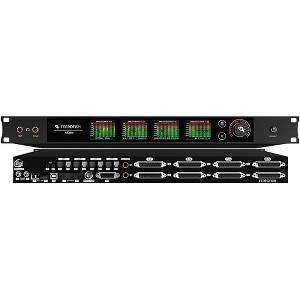

Ferrofish A 32 Pro AD/DA Converter with Coaxial and Multi Mode MADI and ADAT and Headphone Output

The Ferrofish A32 Pro is based on an innovative modular hardware platform and packed with analog and digital interfaces. In addition to the 32×32 balanced studio-quality analog inputs and outputs and the stereo main out up to 192kHz, the A32 Pro offers both ADAT and MADI, arguably the most widely used digital audio interfaces available. In addition to the optical first MADI module, another SFP MADI module can be added. Different modes allow redundant operation of both interfaces, so if one fails, the other one is activated automatically. If desired, two power supplies can be connected to the device. All power supplies and interfaces are permanently monitored so that in the event of a failure, an error message is output on the TFT screens and on the General Purpose Output (GPO) to connect it to additional hardware.Packed into a compact 1RU, this highly integrated converter is equipped with 32 x 32 balanced analog channels, brought out on eight D-SUB connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps. The sophisticated design, using the latest generation of ESS converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound up to 192kHz. The A32 Pro is not just a converter, but thanks to its flexibility, it's also a digital format converter for integrating both existing and future MADI and ADAT equipment.
