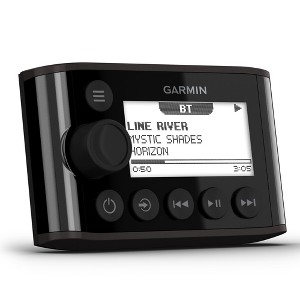

Fusion MS-NRX300 IPX7 NMEA 2000 Wired Remote (Black)

DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS Built on the True-Marine design philosophy from Fusion, the MS-NRX300 remote is IPX7 rated and has been tested to a high level of protection against salt fog, temperature, vibration and UV. NMEA 2000 REPEATER Connect the MS-NRX300 remote to your boat’s existing NMEA 2000 network and display data from your compatible marine electronics including wind data, depth, speed, heading, position, ETA and water temperature. MULTI-ZONE™ TECHNOLOGY The MS-NRX300 remote can control up to four audio zones1 on board your boat with localized volume control and global source selection – allowing you to customize your onboard audio entertainment experience. General PHYSICAL DIMENSIONS (HXWXD): 2.76"; x 4.33"; x 1.97"; (70 x 110 x 50 mm) WATER RATING: IPX7 POWER INPUT: 10.8-16 VDC OPERATING TEMPERATURE RANGE: 32° to 122° F (0° to 50° C) CURRENT (MAX.): 110 mA at 12 VDC Remote Features DISPLAY: 2.6"; optically bonded monochrome LCD SUPPORTED NMEA 2000 PGN DATA 127250 - Heading sensor reference (true, magnetic) 128259 - Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log) 128267 - Water depth (offset add or subtract) 129025 - Position (latitude and longitude) 129026 - Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic] 129029 - Global Navigation Satellite System (GNSS) position data 129284 - Navigation data (ETA) 130306 - Wind data reference (apparent wind relative to the vessel centerline) 130310 - Water temperature and air pressure 130311 - Water temperature and air pressure 130312 - Temperature and temperature source (sea temperature) WARRANTY: 3 years What's in the Box: NRX300 wired remote Mounting gasket Four 8-gauge, self-tapping screws Two screw covers 20 ft (6 meter) NMEA 2000® drop cable NMEA 2000 T-connector NMEA 2000 female terminator NMEA 2000 inline terminator Dust cover Documentation
