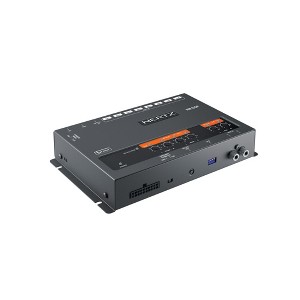

Hertz H8-DSP-DRC High Performance 8 Channel Digital Interface Processor + DRC HE Remote Control

Hertz H8 DSP car audio processor is capable of interfacing with any analog and/or digital source, transforming ordinary “audio” into a high-performance integrated system. The simple and intuitive computer software ensures a wide array of adjustments to improve the acoustic response of a complex environment like the car compartment. It provides 7 signal inputs with a variety of connection options: four high-level inputs, also accepting low-level pre-amplified signals; a stereo auxiliary input and an optical digital input accepting signals at a sample rate up to 96/24 bit. The optical digital input (selectable through the DRC HE remote control and from the “Optical / AUX select” terminal) nullifies interferences and signal deteriorations also by-passing the analog signals A/D conversion stages. Power Supply - • Operating power supply voltage: 10.8 ÷ 14.4 VDC • Power supply: 7.5 ÷ 15 VDC • Idling current: 0,4 A • Switched off without DRC: 2,5 mA • Switched off with DRC: 4 mA • Remote IN voltage: 6,5 ÷ 15 VDC (1,3 mA) • Remote OUT voltage: 12 VDC (130 mA) Signal Stage - • Distortion - THD @ 1 kHz, 1V RMS Output: 0,005% • Bandwith @ -3 dB: 10 ÷ 22k Hz • Channel Separation @ 1 kHz: 85 dB • Input sensitivity (Speaker In): 2 ÷ 15 V RMS • Input sensitivity (AUX In): 0,6 ÷ 5 V RMS • Input impedance (Speaker In): 2,2 kΩ • Input impedance (AUX): 15 kΩ • Max Output Level (RMS) @ 0.1% THD: 4 V RMS
