$280.00 when purchased online
Target Online store #3991
About this item
Highlights
- Shallow 6x9" PP Cone Woofer
- 3-1/2" 2way Mid-High Speaker
- Custom fit for select Chrysler, Dodge, & Toyota
- 6x9" Multi-Use Bracket Included
- Please check the product box for the Kenwood provided manual with instructions
Description

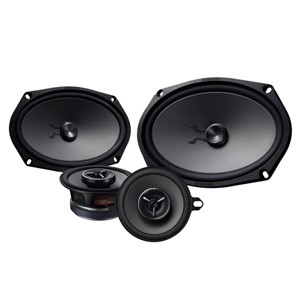

KFC-XP6903C 6x9" + 3-1/2" Component SpeakersHighlights:
•Shallow 6x9" PP Cone Woofer
•3-1/2" 2way Mid-High Speaker
•Custom fit for select Chrysler Dodge Toyota
•6x9" Multi-Use Bracket Included
6x9" Vehicle Specific Component SpeakersIntroducing the industrys best solution for a 6x9 door speaker and vehicle specific sized dash speaker replacement all in one package! By pairing a set of true mid-bass 6x9 drivers with 3-1/2 speakers solid mid-bass response along with rich mid and high frequency reproduction is delivered. Multi-brackets are included enabling easy OEM replacement in many Chrysler Dodge Toyota vehicles and more!
General FeaturesCar BrandVehicleKFC-XP6903C KFC-XP6902C BracketBracketCHEVROLETSilverado ('14-present) xType 1*Tahoe ('15-present) xType 1*Camaro ('15-present) xType 2*CHRYSLER200 ('15-'17)x- 300 ('11-present)x- DODGEAvenger ('08-'14)x- RAM ('10-present)x- Caliber ('07-'12) x-Caravan ('08-present)x- Challenger ('08-present)x- Charger ('06-present)x- Journey ('09-present)x- TOYOTATacoma ('04-'16) xType 3Tundra ('07-present) xType 3Sequoia ('08-present) xType 3FJ Cruiser ('06-'18) xType 34Runner ('02-'09) xType 34Runner ('09-present) xType 4Highlander ('08-present) xType 4Camry ('11-'17)xType 5 Camry ('17-present)xType 6 *With spacer
Features Peak Input Power300WRated Input Power100WImpedance4Woofer Features6 x 9 inch PP ConeMidrange FeaturesPP Cone wooferTweeter FeaturesSilk Balanced Dome TweeterSpecificationsSensitivity84 dB/ W / mFrequency Response45Hz -23KHzCutout Diameter8-9/16 x 5-11/16 inchMounting Depth2-3/4" InchWeight of Magnet(Woofer)14.5 ozWhat's in the Box:
•One pair of 6x9" speakers
•One pair of 3-1/2" speakers
•Mounting brackets
•Owner's manual
Specifications:Electrical
•Impedance(): 4
•Peak Input Power(W): 300W
•RMS Input Power(W) CTA standards: 100W
•Sensitivity (dB at 1m) CTA standards: 84dB
•Frequency Response(Hz) CTA standards: 45-23000Hz
Woofer
•Diaphragm: PP Cone
•Size: 153x229mm 6x9 inch
•Surround: Rubber
•Basket: Steel
•Magnet: Ferrite 90xt15
Midrange
•Diaphragm: PP Cone
•Size: 44mm 3-1/2 inch
•Surround: Rubber
•Basket: Steel
•Magnet Ferrite 65x18
Tweeter
•Diaphragm: Balanced dome
•Size: 25mm 1 inch
•Magnet: Neodynium
Network
•Midrange: HPF -6dB/oct 850Hz
•Woofer: LPF -6dB/oct 850Hz Bypass Selectable inch
Dimension
•Woofer
•Width: 236.4 mm 9-5/16
•Height: 164 mm 6-7/16
•Top Height: 82.3 mm 3-1/4 in.
•Cutout Diameter: 217 x 145 mm 8-9/16 x 5-11/16 in.
•Height from the mounting surface: 12.3 1/2 in.
•Mounting Depth: 70 mm 2-3/4 in.
•Midrange
•Width: 113mm 4-7/16 in.
•Height: 87 mm 3-7/16 in.
•Top Height: 44 mm 1-3/4 in.
•Cutout Diameter: 75.5 mm 3 in.
•Height from the mounting surface: 8 mm 5/16 in.
•Mounting Depth: 36 mm 1-7/16 in.
Weight
•Gross Weight: 4.7kg 165.8 oz
•Weight of Woofer Magnet: 410g 14.5 oz
Accessory
•Bracket for Woofer: 2pcs
•Spacer for Woofer: 2pcs
•In-Line Network: 2pcs
•Speaker Cord for Woofer (0.3m): 2pcs
•Tapping Screw(4x16mm) for Woofer: 8pcs
•Cushion for Bracket/Woofer:
•Shallow 6x9" PP Cone Woofer
•3-1/2" 2way Mid-High Speaker
•Custom fit for select Chrysler Dodge Toyota
•6x9" Multi-Use Bracket Included
6x9" Vehicle Specific Component SpeakersIntroducing the industrys best solution for a 6x9 door speaker and vehicle specific sized dash speaker replacement all in one package! By pairing a set of true mid-bass 6x9 drivers with 3-1/2 speakers solid mid-bass response along with rich mid and high frequency reproduction is delivered. Multi-brackets are included enabling easy OEM replacement in many Chrysler Dodge Toyota vehicles and more!
General FeaturesCar BrandVehicleKFC-XP6903C KFC-XP6902C BracketBracketCHEVROLETSilverado ('14-present) xType 1*Tahoe ('15-present) xType 1*Camaro ('15-present) xType 2*CHRYSLER200 ('15-'17)x- 300 ('11-present)x- DODGEAvenger ('08-'14)x- RAM ('10-present)x- Caliber ('07-'12) x-Caravan ('08-present)x- Challenger ('08-present)x- Charger ('06-present)x- Journey ('09-present)x- TOYOTATacoma ('04-'16) xType 3Tundra ('07-present) xType 3Sequoia ('08-present) xType 3FJ Cruiser ('06-'18) xType 34Runner ('02-'09) xType 34Runner ('09-present) xType 4Highlander ('08-present) xType 4Camry ('11-'17)xType 5 Camry ('17-present)xType 6 *With spacer
Features Peak Input Power300WRated Input Power100WImpedance4Woofer Features6 x 9 inch PP ConeMidrange FeaturesPP Cone wooferTweeter FeaturesSilk Balanced Dome TweeterSpecificationsSensitivity84 dB/ W / mFrequency Response45Hz -23KHzCutout Diameter8-9/16 x 5-11/16 inchMounting Depth2-3/4" InchWeight of Magnet(Woofer)14.5 ozWhat's in the Box:
•One pair of 6x9" speakers
•One pair of 3-1/2" speakers
•Mounting brackets
•Owner's manual
Specifications:Electrical
•Impedance(): 4
•Peak Input Power(W): 300W
•RMS Input Power(W) CTA standards: 100W
•Sensitivity (dB at 1m) CTA standards: 84dB
•Frequency Response(Hz) CTA standards: 45-23000Hz
Woofer
•Diaphragm: PP Cone
•Size: 153x229mm 6x9 inch
•Surround: Rubber
•Basket: Steel
•Magnet: Ferrite 90xt15
Midrange
•Diaphragm: PP Cone
•Size: 44mm 3-1/2 inch
•Surround: Rubber
•Basket: Steel
•Magnet Ferrite 65x18
Tweeter
•Diaphragm: Balanced dome
•Size: 25mm 1 inch
•Magnet: Neodynium
Network
•Midrange: HPF -6dB/oct 850Hz
•Woofer: LPF -6dB/oct 850Hz Bypass Selectable inch
Dimension
•Woofer
•Width: 236.4 mm 9-5/16
•Height: 164 mm 6-7/16
•Top Height: 82.3 mm 3-1/4 in.
•Cutout Diameter: 217 x 145 mm 8-9/16 x 5-11/16 in.
•Height from the mounting surface: 12.3 1/2 in.
•Mounting Depth: 70 mm 2-3/4 in.
•Midrange
•Width: 113mm 4-7/16 in.
•Height: 87 mm 3-7/16 in.
•Top Height: 44 mm 1-3/4 in.
•Cutout Diameter: 75.5 mm 3 in.
•Height from the mounting surface: 8 mm 5/16 in.
•Mounting Depth: 36 mm 1-7/16 in.
Weight
•Gross Weight: 4.7kg 165.8 oz
•Weight of Woofer Magnet: 410g 14.5 oz
Accessory
•Bracket for Woofer: 2pcs
•Spacer for Woofer: 2pcs
•In-Line Network: 2pcs
•Speaker Cord for Woofer (0.3m): 2pcs
•Tapping Screw(4x16mm) for Woofer: 8pcs
•Cushion for Bracket/Woofer:
Dimensions (Overall): 3.25 inches (H) x 4.31 inches (W) x 2.75 inches (D)
Weight: 10.62 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 2 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 77578311
UPC: 019048227058
Origin: made in the USA or imported
