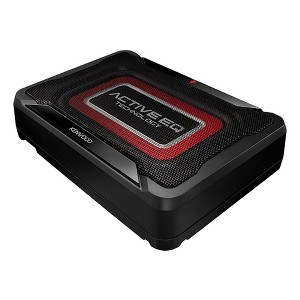

Kenwood KSC-PSW7EQ Compact Powered Subwoofer

Compact Design - Allows for installation almost anywhere, including tight spaces such as under a seat panel Remote Control Sound Adjustment - Volume: Input Sensitivity Control Knob ACTIVE EQ: Equalizer selector switch Frequency: Cut-off frequency control Knob Phase: Phase select switch New Diaphragm Speaker - The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm. This supresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music. Flexible Connectivity and Installation - Supports speaker level input to connect OEM receiver without RCA outputs. Power turns on from either speaker level or RCA signal. Amplifier - • Maximum Output Power: 160W • Signal to Noise Ratio (1 Ohm at 14.4V): 90dB • Input Impedance: RCA 22k ohm / Speaker 10k ohm • Sensitivity: RCA Voltage / Speaker Voltage 0.4mV • Fuse (Battery Cord): 10A • Operating Voltage: DC 14.4V (11V - 16V) • Maximum Current Consumption: 5.9A Speaker (System) - • Woofer Size: 8-1/4 x 5-1/2 inch • Cap Material: Aluminum • Surround Material: Urethane • Impedance: 1 Ohms • Frequency Response: 40Hz-200Hz(-15dB) • Sensitivity: 89 dB • Low-Pass Filter (Frequency) Variable: 50Hz - 125Hz, -18dB/oct • Phase Control: 0° - 180° General Info - • Woofer Size: 8-1/4 x 5-1/2" • Max Power (W): 160W • Current Consumption: 5.9A • Sensitivity (dB at 1m): 89dB • Frequency Response (Hz): 40Hz - 200Hz (-15dB) • Speaker Level Input: Yes (Speaker Level Input) • Signal Sensing Turn-on: Yes (Speaker Level or RCA)
