About this item
Highlights
- Inputs: XLR balanced Outputs: XLR balanced Minimum Load: 150ohm User memories: 24 Recall memories: 24 VU metering: 7 LED for Inputs [-20dBu up to +15dBu; Clip]
- S/N: > 110dB Frequency Response: 20Hz -20kHz ; -0. 5dBu at 20Hz and 20kHzA/D and D/A Resolution: 24 bits Process Resolution: 24x32 bit for filtering process; 96 bits resolution on
- Process: up to 24dBu/Oct HP/LP, +-15dB gain Bell and Shelving filters, RMS compressor/limiter [Attack time from 5ms up to 200ms (1ms resolution up to 20ms,
- 7 LED for Outputs [-20dBu up to +15dBu; Clip; Limit] Output Leeds can be used for displaying the Output level OR the Limiter activity
Description

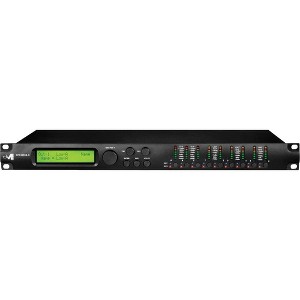

3 input x 6 output Speaker Processor. The activity of the 3 inputs is displayed by rows of 6 level LEDs plus 1 clip LED, the activity of the 6 outputs is displayed by rows of 5 level LEDs plus 1 clip LED plus 1 Limiter LED. The unit has 3 analog inputs, a stereo digital input, & 6 analog outputs. Each input has 5 parametric filters & each output has 5 parametric filters. All the input & output filters can be selected to be Bell, first and second Order Shelvings w/-3dB at cutting Frequency, Symmetrical Shelving w/variable Q, High Pass/Low Pass w/variable Q, 1st/2nd Order, All Pass (90/180Deg. Phase rotation at the cutting Frequency), Bandpass & Notch. The outputs X-Over section has Butterworth, Linkwitz/Reyleigh & Bessel filters up to 24dB/Oct or Custom selectable High Pass/Low Pass up to 24dB/Oct configurable by the user as cascade of IInd Order cells adjustable in Freq & Q. On Outputs are available a RMS compressor w/selectable Ratio up to 32:1 & adjustable Soft/Hard Knee & an Output Peak Limiter w/THR in Vp or dB
TCIN: 92981429
UPC: 6954798536552
Origin: imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 22.5 inches length x 12.75 inches width x 4.5 inches height
Estimated ship weight: 11 pounds
