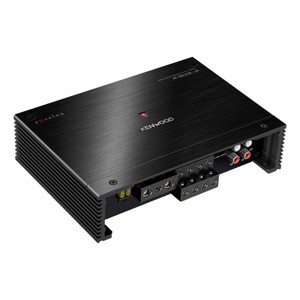

Kenwood X303-4 X Series Class D 4-Channel Amplifier

Features
•Max Power 600W
•RMS 50W x4 (4)
•RMS 75W x4 (2)
•Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
•High-Resolution Audio Certified
•Variable Low Pass Filter
•Bass Boost

Rich and Immersive High-Resolution AudioHigh-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies immerse yourself in a rich and high-quality sonic experience.

Output Coil with Magnetic ShieldPrevents magnetic flux from radiating from the subwoofer's coil resulting in reduced noise and enhanced sound quality.

High Quality CapacitorsPMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion ensuring clear detail for a truer to life sound.

One-Side ConnectionAll terminals and connections are on one side for easier installation and a cleaner look.

Speaker Level Input HarnessSpeaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

What's in the Box
•X303-4 X Series Class D 4-Channel Amplifier
•Installation Hardware
•Manual

Specifications
•CTA-2006-D Value
•Maximum Dynamic Power: 65W at 4 ohms and 10% THD + N
•Continuous Power Output: 50W at 4 ohms and 1% THD + N
•Signal to Noise: 84 dBA reference 1 Watt RMS


•Maximum Power Output: 600W
•Rated Power Output at 14.4V
•A/B (4 Ohms): 50 Watts RMS x 4 (4 Ohms 20-20kHz 1.0% THD)
•A/B (2 Ohms): 75 Watts RMS x 4 (2 Ohms 1kHz 1.0% THD)
•A/B (Bridged 4 Ohms): 150 Watts RMS x 2 (Bridged 4 Ohms 1kHz 1.0% THD)


•Specifications
•Signal to Noise Ratio: 90 dB (Reference: Rated Power into 4 Ohms at 14.4V)
•Frequency Response: 20Hz - 50kHz (+0dB -3dB)
•Input Impedance: 10 k
•Speaker Impedance: 4 (2 to 8 allowable)
•Bridged Connection: 4 to 8 allowable


•Audio
•Low-Pass Filter (A/B): 50Hz-200Hz -12dB/oct
•High-Pass Filter (A/B): 50Hz-200Hz -12dB/oct
•Bass Boost: 40Hz 0dB to +18dB (Bch)
•Infrasonic Filter: Not specified
•RCA Input Sensitivity: 0.2 [V] - 5.0 [V]
•Speaker Level Input Sensitivity: 4.0 [V] - 12.0 [V]


•Terminals
•Battery Ground: Wire Clamp Type Terminal Block (M6 Nickel Colored) Hexagon Screw Capable for AWG4-AWG6
•Speaker Output: Wire Clamp Type Terminal Block (M4 Nickel Colored) Hexagon Screw Capable for AWG8-AWG16


•General
•Dimensions (WxHxD): 8-3/8 x 2-1/16 x 5-7/8
•Weight: 3.1 lbs
•Operating Voltage: 14.4V (11-16V allowable)
•Current Consumption: 19 [A]
