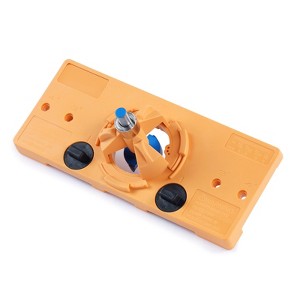

VEVOR Concealed Hinge Jig, Cabinet Hinge Jig with C-Type Clamp and Accessories, PA66 Nylon and Steel Material, Accurate Hinge Drill Jig, Brown

Feature:

Wide Application: The hinge jig suits 1.38'' and 1.02'' hinges. It is primarily designed for precise hinge hole positioning in wood and can be used with power tools like drills for easy angled drilling. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).
Sturdy and Durable: The main panel of our door hinge jig is made of high-strength engineering PA66 material, while the drilling tools are made of carbon steel and YG8 hard alloy. Its overall structure is stable, ensuring durability and adaptability to harsh weather conditions, high temperatures, and moisture. It maintains strength and stability, with minimal risk of deformation or damage, even with prolonged use.
Precision Drilling: Our hinge jig kit can precisely position holes without marking. The C-type clamp, limit positioning accessories, and the 4-stage adjustable dial (0.12''/0.16''/0.20''/0.24'') prevent hole deviation, making it easy to accomplish accurate and quick drilling work.
User-Friendly: The concealed hinge jig is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, install the drilling tool and tighten the limit positioning accessories; Step 2, adjust the dial and insert the positioning rod; Step 3, secure the drill bit with the C-type clamp; Step 4, drill the 1.38'' hole and side holes in sequence, then install the hinge. You can complete the installation in just a few minutes.
Comprehensive Accessories: The 35mm cabinet hinge jig kit comes with a rich set of accessories, including 1 x main panel, 1 x φ35mm hole cutter, 1 x hex wrench, 1 x φ2mm twist drill bit, 1 x positioning rod, 1 x stand, 1 x positioning ring, 1 x c-type clamp, 2 x 26mm hinge hole positioning assistants. This comprehensive kit provides everything you need to handle hinge-hole drilling tasks effortlessly.

Package Content

1 x Main Panel
1 x Φ35mm Hole Cutter
1 x Hex Wrench
1 x Φ2mm Twist Drill Bit
1 x Positioning Rod
1 x Stand
1 x Positioning Ring
1 x C-Type Clamp
2 x 26mm Hinge Hole Positioning Assistants
1 x User Manual
