$1199.99 when purchased online
Target Online store #3991
About this item
Highlights
- Combines a 8-channel digital sound processor (DSP) with a 6-channel power amplifier in one compact unit
- Delivers 80 watts per channel at 4 ohms, 120 watts per channel at 2 ohms, and 240 watts per channel at 4 ohms bridged
- The DSP allows you to customize the frequency response, time alignment, polarity, and mixing of each channel
- Included dash remote to control the input source, master volume, and bass output
- Multiple input options, including low-level, high-level, optical, coaxial, and Bluetooth (with the optional HD-BT module)
Description
The DSP-IV Series signal processors present a complete solution tailored for sound quality enthusiasts. Available with or without on-board amplification the DSP-IV Series signal processors are feature packed and deliver audiophile sound quality with enhanced software and the latest in OEM integration technology.
Features
•8 Channel DSP
•On-board 6 channel (720 Watt) amplifier
•Coaxial and optical inputs
•Dash remote with interactive control for input source control the master volume and bass output
•Determine which inputs will be used for each output and how much of each input the output will receive with the mixing set function
•Auto calibration function when used with the (optional) M-AT1 microphone
•HD-BT streaming (with optional HD-BT II-D module)
•User-friendly software
New Features New Control Even Improved Sound QualityYou can only be as good as your source material and the new DSP-IV series greatly expands your potential for the best possible source material. The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The DSP-IV units also have a port for HD Bluetooth streaming (with the optional HD-BT module). An interactive digital port will expand your options even more. The port accepts the control input from the included Dash Remote so you can change input source select your song control the master volume and even control the output of your systems bass amps. The added Advanced menu also has a Mixing Set and an AutoTune function (except the 12-ch. and 16-ch. model) when you add the optional tuning microphone.
Auto CalibrationThe DSP-IV series processors give you automatic calibration for Equalization Phase and Signal Delay when you add the optional calibrated tuning microphone. You can choose which function of functions you wish to have the system calibrate and you can choose which channels you wish to include in the calibration. In the Graph area you can see what the system is doing by looking at the Speaker curves and/or the Equalization curves and you can turn the target curve on or off. Calibrating all channels for all functions can typically 5 to 10 minutes to do automatically what you might spend several hours doing. Of course it is the human ear that will always be the final judge but the auto-tuning puts you at the point where you can do just the final tweaks and sit back and enjoy the music.
What's in the Box

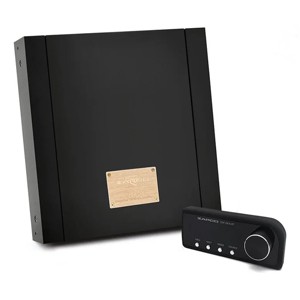

•ADSP-Z8 IV-6AT 8-Channel DSP with 6-Channel Amplifier
•Dash Remote Cable
•Speaker LeveL Input Harness
•USB A to B Cable (for PC control)
•Mounting Hardware
•Manual
Specifications
•DSP Processor: Cirrus Logic CS47048
•Power: 150 MHz/32 bit/192 KHz
•Channels: 8
•ADC: Cirrus Logic CS47048 32 bit/192 KHz
•ADC Dynamic Range/THD: 108 dB/-98 dB
•DAC: Cirrus Logic CS8422 24 bit/192 KHz
•DAC Dynamic Range/THD: 140 dB/-120 dB
•Low level (Pre)/Sensitivity: 1-5 VRMS
•High Level (Spk In)/Sens.: 2-20 V
•Optical Digital IN: 24 bit-192 KHz
•Coaxial Digital IN: 24 bit-192 KHz
•Freq. Response (-3dB): 10 Hz - 22.5 KHz
•S/N Input: 110 dBA (D) - 106 dBA (A)
•S/N Ratio Amp + DSP at max. power: 95 dBA
•THD+N Input: 0002% (D) - 0005% (A)
•THD+N Amplif. + DSP Analog Input: 007 %
•Crosstalk at 1 Khz only DSP: 90 dB
•Crosstalk Amplifier + DSP: 45 dB
•Amp Power @ 4: 6 x 80 watts
•Amp Power @ 2: 6 x 120 watts
Features
•8 Channel DSP
•On-board 6 channel (720 Watt) amplifier
•Coaxial and optical inputs
•Dash remote with interactive control for input source control the master volume and bass output
•Determine which inputs will be used for each output and how much of each input the output will receive with the mixing set function
•Auto calibration function when used with the (optional) M-AT1 microphone
•HD-BT streaming (with optional HD-BT II-D module)
•User-friendly software
New Features New Control Even Improved Sound QualityYou can only be as good as your source material and the new DSP-IV series greatly expands your potential for the best possible source material. The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The DSP-IV units also have a port for HD Bluetooth streaming (with the optional HD-BT module). An interactive digital port will expand your options even more. The port accepts the control input from the included Dash Remote so you can change input source select your song control the master volume and even control the output of your systems bass amps. The added Advanced menu also has a Mixing Set and an AutoTune function (except the 12-ch. and 16-ch. model) when you add the optional tuning microphone.
Auto CalibrationThe DSP-IV series processors give you automatic calibration for Equalization Phase and Signal Delay when you add the optional calibrated tuning microphone. You can choose which function of functions you wish to have the system calibrate and you can choose which channels you wish to include in the calibration. In the Graph area you can see what the system is doing by looking at the Speaker curves and/or the Equalization curves and you can turn the target curve on or off. Calibrating all channels for all functions can typically 5 to 10 minutes to do automatically what you might spend several hours doing. Of course it is the human ear that will always be the final judge but the auto-tuning puts you at the point where you can do just the final tweaks and sit back and enjoy the music.
What's in the Box
•ADSP-Z8 IV-6AT 8-Channel DSP with 6-Channel Amplifier
•Dash Remote Cable
•Speaker LeveL Input Harness
•USB A to B Cable (for PC control)
•Mounting Hardware
•Manual
Specifications
•DSP Processor: Cirrus Logic CS47048
•Power: 150 MHz/32 bit/192 KHz
•Channels: 8
•ADC: Cirrus Logic CS47048 32 bit/192 KHz
•ADC Dynamic Range/THD: 108 dB/-98 dB
•DAC: Cirrus Logic CS8422 24 bit/192 KHz
•DAC Dynamic Range/THD: 140 dB/-120 dB
•Low level (Pre)/Sensitivity: 1-5 VRMS
•High Level (Spk In)/Sens.: 2-20 V
•Optical Digital IN: 24 bit-192 KHz
•Coaxial Digital IN: 24 bit-192 KHz
•Freq. Response (-3dB): 10 Hz - 22.5 KHz
•S/N Input: 110 dBA (D) - 106 dBA (A)
•S/N Ratio Amp + DSP at max. power: 95 dBA
•THD+N Input: 0002% (D) - 0005% (A)
•THD+N Amplif. + DSP Analog Input: 007 %
•Crosstalk at 1 Khz only DSP: 90 dB
•Crosstalk Amplifier + DSP: 45 dB
•Amp Power @ 4: 6 x 80 watts
•Amp Power @ 2: 6 x 120 watts
Dimensions (Overall): 8 inches (H) x 4 inches (W) x 16 inches (D)
Weight: 7.0 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 90502488
UPC: 8033373005251
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
