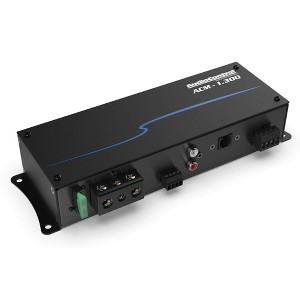

Audio Control ACM-1.300 Monoblock Micro Amplifier with Accubass

Audio Control ACM-1.300 Monoblock Micro Amplifier with Accubass ACM series amplifiers are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation. Reversible cover plates allow flexible mounting options when paired with DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting. FEATURES 300 watts @ 2 ohms 175 watts @ 4 ohms AccuBASS® Processing GTOTM Signal Sense Active speaker-level inputs for OEM integration RCA Line Inputs Linkwitz-Riley Crossover Reversible Cover Plate Bulletproof 5 year warranty (when installed by an authorized Audio Control dealer) SPECIFICATIONS INPUTS Preamp Inputs: 2 Balanced Preamp Input Voltage Range: 500 mV – 6 V RMS Speaker Level Inputs: 2 OUTPUTS Rated Continuous (RMS) Power at 14.4V: 4 Ω – 175 W RMS 2 Ω – 300 W RMS PERFORMANCE Frequency Response: 10 Hz – 22 kHz Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm THD+N: < 0.01% Power / Ground Wire Gauge: 10 to 4 AWG wire Fuse Rating: 1 x 30 A Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass PFM Subsonic Filter: 24 Hz WEIGHTS & DIMENSIONS Dimensions: 9.4″W x 3.0″D x 1.75″H Weight: 1.3 lbs. (0.6kg) IN THE BOX: ACM-1.300, Speaker Connectors, Fuse, Manual, Warranty
