$279.00 when purchased online
Target Online store #3991
About this item
Highlights
- Dual moving coil design with bonded elliptical stylus and aluminum cantilever
- Featuring independent coils for both left and right channels, provides outstanding channel separation
- Reverse V-shaped formation exerts less pressure on the stylus, thereby minimizing distortion
- Neodymium magnet and pure iron yoke provide increased magnetic energy
- Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
Description

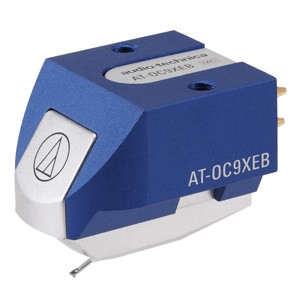

The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus thereby minimizing distortion.
Audio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increases the magnetic energy and the bonded elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.
Features
•Dual Moving Coil Design
•Bonded Elliptical Stylus Aluminum Cantilever
•Outstanding Channel Separation
•Bonded Elliptical Stylus Aluminum Cantilever
•Neodymium Magnet Pure Iron Yoke Increase Magnetic Energy
•Aluminum Body Minimizes Unwanted Vibrations
What's in the Box
•AT-OC9XEB Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•(2) Washers
•Brush
•Cartridge Installation Screws
Specifications
•Frequency Response: 20-30000 Hz
•Channel Separation: 25 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Bonded round shank
•Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.32 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: Elliptical bonded
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Dimensions (W x H x D): 0.66" x 0.68" 1.01"
•Body Material: Aluminum
•Model: AT-OC9XEB
•Mounting Feature: Half-inch mount
•Stylus Curvature Radius: 0.3 x 0.7 mil
•Stylus Size: Bonded round shank
•Terminal Pins: Brass
•Type: Dual Moving Coil
•Weight: 7.6 g (0.3 oz)
•Wire Used for Coil: PCOCC
Audio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increases the magnetic energy and the bonded elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.
Features
•Dual Moving Coil Design
•Bonded Elliptical Stylus Aluminum Cantilever
•Outstanding Channel Separation
•Bonded Elliptical Stylus Aluminum Cantilever
•Neodymium Magnet Pure Iron Yoke Increase Magnetic Energy
•Aluminum Body Minimizes Unwanted Vibrations
What's in the Box
•AT-OC9XEB Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•(2) Washers
•Brush
•Cartridge Installation Screws
Specifications
•Frequency Response: 20-30000 Hz
•Channel Separation: 25 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Bonded round shank
•Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.32 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: Elliptical bonded
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Dimensions (W x H x D): 0.66" x 0.68" 1.01"
•Body Material: Aluminum
•Model: AT-OC9XEB
•Mounting Feature: Half-inch mount
•Stylus Curvature Radius: 0.3 x 0.7 mil
•Stylus Size: Bonded round shank
•Terminal Pins: Brass
•Type: Dual Moving Coil
•Weight: 7.6 g (0.3 oz)
•Wire Used for Coil: PCOCC
Dimensions (Overall): .66 inches (H) x .68 inches (W) x 1.01 inches (D)
Weight: .01 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003837523
UPC: 4961310150440
Origin: made in the USA or imported
