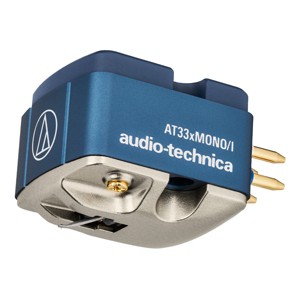

Audio-Technica AT33XMONO/I Dual Moving Coil Mono Cartridge
New at target
$649.00
In Stock
Eligible for registries and wish lists
Sponsored
About this item
Highlights
- “True Mono” design rejects vertical noise for clear sound, strong bass, less surface noise
- Neodymium magnet and permendur yoke maximize efficiency and resolution
- Composite zinc/aluminum/polymer body reduces resonance
- PCOCC copper coils ensure smooth, pure signal transmission
- Conical stylus ensures accurate groove tracking
Description
The AT33xMONO/I employs a True Mono dual moving coil design that rejects vertical noise delivering clear mono sound with stronger bass and reduced surface noiseideal even on stereo systems. Its 0.65 mil conical nude stylus tracks mono grooves with precision while a piano-wire suspension enhances tracking and mid-low range impact. A composite zinc aluminum and polymer body minimizes resonance for balanced playback and PCOCC coils ensure pure transmission. Paired with a neodymium magnet and permendur yoke optimized for mono the cartridge achieves efficient responsive high-resolution sound.
Features
•Dual Moving Coil Mono Cartridge with Conical Nude Stylus
•PCOCC Coils Ensure Smooth Signal Transmission
•Composite Body Reduces Resonance for Balanced Sound
Material DifferenceThe AT33xMONO/Is rigid duralumin pipe cantilever which tapers toward the conical stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. True Mono PCOCC coils are positioned at the cantilevers fulcrum to ensure pure transmission of horizontal mono signals.
Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials die-cast zinc aluminum and high-rigidity polymer optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.
What's in the Box
•AT33XMONO/I Dual Moving Coil Mono Cartridge
•Installation Kit
•Manual
Specifications
•Type: MC
•Frequency response: 20 to 30000 Hz
•Output voltage: 0.42 mV (1 kHz 5 cm/sec. horizontal signal)
•Horizontal/vertical output ratio: 25 dB (1 kHz)
•Output balance: 1.0 dB (1 kHz)
•Tracking force: 2.0 to 2.4 g (2.2 g standard)
•Coil impedance: 10 ohms (1 kHz)
•DC resistance: 10 ohms
•Recommended load impedance: 100 ohms (when head amplifier connected)
•Coil inductance: 27 H (1 kHz)
•Static compliance: 14 10⁻⁶ cm/dyne
•Dynamic compliance: 6 10⁻⁶ cm/dyne (100 Hz)
•Stylus: Nude conical
•Stylus curvature radius: 0.65 mil
•Cantilever: Duralumin pipe
•Vertical tracking angle: 20
•Dimensions: 16.1 mm (0.63) 16.6 mm (0.65) 26.1 mm (1.0) (H W D)
•Threaded hole: M2.6 2
•Weight: 10.1 g (0.36 oz)
Features
•Dual Moving Coil Mono Cartridge with Conical Nude Stylus
•PCOCC Coils Ensure Smooth Signal Transmission
•Composite Body Reduces Resonance for Balanced Sound
Material DifferenceThe AT33xMONO/Is rigid duralumin pipe cantilever which tapers toward the conical stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. True Mono PCOCC coils are positioned at the cantilevers fulcrum to ensure pure transmission of horizontal mono signals.
Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials die-cast zinc aluminum and high-rigidity polymer optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.
Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.
What's in the Box
•AT33XMONO/I Dual Moving Coil Mono Cartridge
•Installation Kit
•Manual
Specifications
•Type: MC
•Frequency response: 20 to 30000 Hz
•Output voltage: 0.42 mV (1 kHz 5 cm/sec. horizontal signal)
•Horizontal/vertical output ratio: 25 dB (1 kHz)
•Output balance: 1.0 dB (1 kHz)
•Tracking force: 2.0 to 2.4 g (2.2 g standard)
•Coil impedance: 10 ohms (1 kHz)
•DC resistance: 10 ohms
•Recommended load impedance: 100 ohms (when head amplifier connected)
•Coil inductance: 27 H (1 kHz)
•Static compliance: 14 10⁻⁶ cm/dyne
•Dynamic compliance: 6 10⁻⁶ cm/dyne (100 Hz)
•Stylus: Nude conical
•Stylus curvature radius: 0.65 mil
•Cantilever: Duralumin pipe
•Vertical tracking angle: 20
•Dimensions: 16.1 mm (0.63) 16.6 mm (0.65) 26.1 mm (1.0) (H W D)
•Threaded hole: M2.6 2
•Weight: 10.1 g (0.36 oz)
Dimensions (Overall): 6.0 inches (H) x 3.0 inches (W) x 6.0 inches (D)
Weight: .5 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1006549021
UPC: 4961310164058
Origin: made in the USA or imported
