AudioControl DM-RTA-PRO-KIT Real Time Analyzer And Multi-test Tool Kit

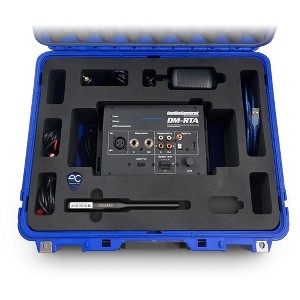

REAL TIME ANALYZER AND MULTI-TEST TOOL KIT The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, the CM-30 measurement microphone, all of the required interconnects, and custom test leads for line-level and speaker-level measurements. Included in kit DM-RTA Real Time Analyzer 110V AC power supply/charging adapter (DM-RTA) 12V DC power supply/charging adapter (DM-RTA) USB A to B cable USB A to A cable CM-30 measurement microphone XLR microphone cable Speaker input to spring-loaded test leads cable RCA input to spring-loaded test leads cable AudioControl tuning pick (looks a lot like a guitar pick) Blue hard case with laser-cut foam SPECIFICATIONS DM-RTA INPUTS 1 x Balanced (Input Impedance 3.24kΩ) 1 x Unbalanced (Input Impedance 3.24kΩ) 1 x Microphone (Input Impedance 10kΩ) 1 x Speaker Level (Input Impedance 16.24kΩ) Max Low Level Input Voltage: 8 Vrms Max High Level Input Voltage: 40 Vrms OUTPUTS 1 x Balanced (Output Impedance: 51Ω) 1 x Unbalanced (Output Impedance: 51Ω) 1 x Coax Digital (Output Impedance: 75Ω) 1 x Toslink 1 x USB Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak GENERAL Power Supply: Battery Life: ~5 Hours WEIGHTS & DIMENSIONS Dimensions: 8”W x 4.8”D x 2.4”H Weight: 2.6lbs (1.2kg) IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual, Warranty CM-30 Performance Frequency Response: 20Hz – 20kHz Sensitivy: -32 dB ± 2 dB (0 dB = 1V/Pa at 1 kHz) Max SPL: 138 dB SPL Connector: 3 pin XLR, pin 2 positive WEIGHTS & DIMENSIONS Dimensions: 16.5”W x 16”D x 7”H Weight (with included product): 13.0 lbs. (5.9 kg)
