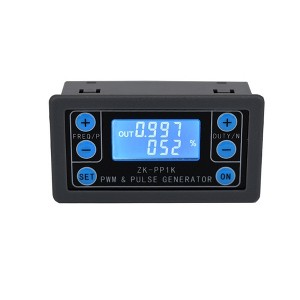

Double Mode Signal Generator 1-Channel 1HZ-150KHZ Pulse Frequency Operation Cycle Adjustable Square Wave Generator Show
$13.80 sale price when purchased online
$15.00 list price
Target Online store #3991
About this item
Highlights
- --The signal generator provides electrical signals of various frequencies, square waves, pulses and output levels.
- --It supports dual modes: PWM mode and PULSE mode, LCD high-definition display.Support frequency adjustment, and duty cycle adjustment and power-down memory function
- --High-precision detection, 1 channel signal output, support reverse protection and enable/disable output
- --Used as a signal source or stimulus source for testing.
- --Widely used in production practice and technology.
Description
Description:
Name: PWM Signal Generator
Working voltage: DC 3.3V -30V
Frequency range: 1Hz~150KHz, the accuracy is about 1%
Duty cycle range: 0.00%-100%
Output current: <30mA
Number of pulses: 1~9999 or infinite
Delay output time: 0.000s~9999s, the minimum can be set to 1ms
Positive and negative pulse width: 0.000s~9999s, the minimum can be set to 1ms
Output amplitude: same as input voltage
Working temperature: -20 -85℃
Working humidity: 0% -95%RH
Packing list: 1 x PWM Signal Generator
Note:
Due to manual measurement, please allow 1-3 cm error, thank you
Due to screen and other objective reasons, there may be a certain color difference, please understand.
TCIN: 94252013
UPC: 6955694484497
Origin: imported
