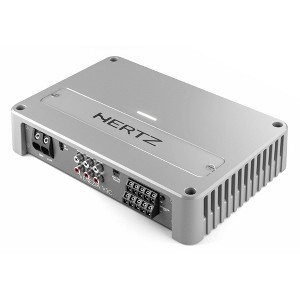

Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm

Venezia V5C is the compact five channels marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C is engineered and tested for marine applications and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. Last but not least, Venezia V5C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting. General Specs Channels: 5 - 3 POWER SUPPLY Power supply voltage: 9 ÷ 16 VDC ldling current (power ON/OFF): 1.7 A / 0.05 mA Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 47 A Remote In:: 7 ÷ 15 VDC - 1 mA AMPLIFIER STAGE Distorsion - THD (100Hz @ 4Ω): <0,05% Bandwidth: 10 ÷ 42 kHz S/N Ratlo (A welghted @ 1 V): 100 dB Damping factor (100Hz @ 4Ω): >130 Pre-ln sensitivity: 0.2 ÷ 5 VRMS Pre-ln impedance: 10 kΩ Load impedance (MIN) @5Ch: 2Ω @3Ch: 4Ω + 4Ω + 2Ω Weight (kg/lb): 3.72 / 8.2 Adjustable Crossovers: yes Output Power OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% 5Ch: 80 W x 4 (4Ω) + 330 x 1 (4Ω) 5Ch: 115 W x 4 (2Ω) + 550 W x 1 (2Ω) 3Ch: 230 W x 2 (4Ω) + 330 W x 1 (4Ω) 3Ch: 230 W x 2 (4Ω) + 550 W x 1 (2Ω) Total Power RMS: 1010 W INPUTS / FILTERS Inputs: A Ch. Pre in, B Ch. Pre in, Sub Ch. Pre in Pre Out: No A Ch. filters: Yes By-Pass Yes Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct B Ch. filters: By-pass: Yes Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct Sub Ch. filters: By-pass: No Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct Phase (adjust°): (0 ÷ 180°) Subsonic: 25 Hz @ 24 dB/Oct Boost 50 Hz (adjust): (0 ÷ 12) dB
