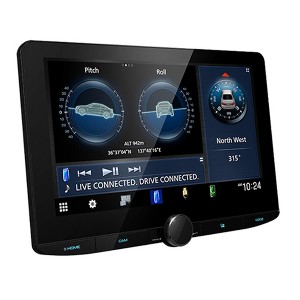

Kenwood DMX1038S 10.1 HD Capacitive Screen Media Receiver, Screen Adjustments include vertical and horizontal settings, 1-DIN Chassis, Wireless Car...
$1599.00 when purchased online
Target Online store #3991
About this item
Highlights
- 10.1" High Definition Monitor with Capacitive Touch Panel
- Floating Panel Mechanism with 4-way Position Adjustment
- Android Auto™ & Android Auto™ Wireless/Wired and Wireless Apple CarPlay®
- High-Resolution Audio Wireless
- Wireless Mirroring for Smartphone
Description
General
Operating voltage: 12V DC Car Battery
Set Weight: 2.5Kg/ 5.6lb
Chassis Dimensions WxHxD: 178mm x 50mm x 158mm/ 7 x 2 x 6-1/4 inch
Weight: 1.3kg/ 2.9lb
Monitor Dimensions WxHxD: 262mm x 181mm x 52mm/ 10-5/16 x 7-1/8 x 2-1/16 inch
Weight: 1.1Kg/ 2.4lb
Monitor Section
Picture size: 10.1 inches(diagonal) wide
W x H: 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch)
Display system: LCD panel
Drive system: TFT active matrix system
Number of pixels: 2,764,800, 1280H x 720V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
USB I/F Section
Connector Type: Type-C
USB Standard: USB2.0 High Speed
File System: FAT 16/32, exFAT, NTFS
Maximum Power Supply Current: DC5V=3.0A
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section
Technology: Bluetooth Ver5.2
Frequency: 2.402 – 2.480 GHz
Maximum Communication range: Line of sight approx. 10m (32.8ft)
Audio Codec: SBC / AAC / LDAC
Digital FM
Frequency Range: 87.9MHz - 107.9MHz (Frequency step)(200kHz)
Frequency Response: 20Hz - 20kHz (±3.0 dB)
S/N: 80dB (STEREO)
Digital AM
Frequency Range: 530kHz - 1700kHz (Frequency step)(10kHz)
Frequency Response: 40Hz - 15kHz (±3.0 dB)
S/N: 80dB (STEREO)
FM
Frequency Range: 87.9MHz - 107.9MHz (Frequency step)(200kHz)
Usable sensitivity: 7.3dBf
S/N 30dB: 0.7μV/75Ω
Frequency response (±3.0dB): 30Hz - 15kHz
S/N(dB): 70dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)
AM
Frequency Range: 530kHz - 1700kHz (Frequency step) (10kHz)
Usable sensitivity: 30dBμ
Video
Color system of external video input: NTSC/PAL
External video input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Audio
Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear): 29W x 4 (4Ω,1kHz,10%THD)
Output frequency band: 20 - 88,000Hz
Preout level (V): 5V / 10kOhms
Preout impedance (Ω): =< 300 Ohms
Speaker Impedance (Ω): 4-8 Ohms
Dimensions (Overall): 18.0 inches (H) x 8.0 inches (W) x 14.0 inches (D)
Weight: 10.0 pounds
Electronics Condition: New
Wireless Technology: Bluetooth
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003683868
UPC: 019048240859
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
