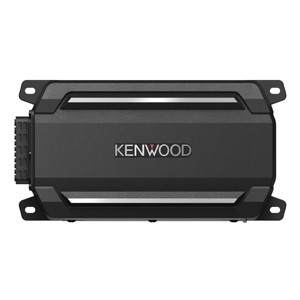

Kenwood KAC-M5001 Compact Mono Digital Marine & Motorsports Subwoofer Amplifier

Your Everywhere Audio ExperienceFeatures
•IP67/IP66 Certified Waterproof Dustproof
•RMS 200W (4)
•RMS 300W (2)
•Speaker Level Input
•Signal Sensing Turn-on
•Wired Level Control Included

Waterproof DustproofIPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes and can resist high-pressure heavy sprays of water.

Salt Spray ProofASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration ProofThick 1/4" die-cast frame suppresses vibration.

Increased Power FlowMetal studs enable high current flow for connections between the amplifier and battery resulting in powerful bass reproduction.

High Quality CapacitorsPMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion ensuring clear detail for a truer to life sound.

Magnetic ShieldingMagnetic shields for the output coils reduce radiated noise further contributing to smooth and accurate bass frequency signals.

Speaker Level InputIf your receiver does not have RCA outputs you can connect your speaker cables directly to the KAC-M5001's RCA cables to use as an audio signal input.

Wired Level Control IncludedWaterproof certified wired remote level control allows you to easily adjust the subwoofer volume.

System EXPANSION ReadyKENWOOD Audio Receivers and the KAC-M5024BT have RCA outputs to expand the system to connect to the KAC-M5001 mono amplifier and subwoofer.

What's in the Box
•KAC-M5001 Compact Mono Digital Marine Motorsports Subwoofer Amplifier
•Wired Remote Control Unit with Attached 23.6' (6m) Cable
•Nut and Washer for remote unit mounting
•(4) Stainless Steel Self-tapping Screw (4 x 16mm)
•4" Plastic Wire Tie
•Manual
•Warranty Card

Specifications
•Amplifier Type: Class D
•CTA-2006-D Value
•Maximum Dynamic Power: 220W at 4ohms and 10% THD + N
•Continuous Power Output: 200W at 4ohms and 1% THD + N
•Signal to Noise: 78dBA reference 1 Watt RMS


•Maximum Power Output
•MAX POWER: 600W


•RMS Power at 14.4V
•4 Ohms: 200Watts RMS x 1 at 4 Ohms 20-200Hz 1% THD+N
•2 Ohms: 300Watts RMS x 1 at 2 Ohms 100Hz 1%THD+N


•Audio
•Signal to Noise Ratio: 97dB (Reference: Rated Power into 4Ohms at 14.4V)
•Frequency Response: 20Hz-200Hz (+0dB -3dB)
•Input Impedance: 10k ohm
•Speaker Impedance: 4 ( 2 to 8 allowable)
•Low-pass Filter: 50-200Hz -24dB/oct
•High-pass Filter: N/A
•Infrasonic Filter: 20Hz -24dB/oct
•Bass Boost Control: 40/60/80Hz 0dB - +18dB
•RCA Input Sensitivity: 0.2 (V) - 5.0 (V)
•Speaker Level Input Sensitivity: 4.0 (V) - 12.0 (V)


•Terminal
•Battery Ground: 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
•Speaker Output: 12" 18-gauge x2(Parallel) Pigtail Cable with Molded Strain Relief Bushing
•Line In (Pigtail RCA): Yes
•Pre Out (Pigtail RCA): No
•Speaker Input (Pigtail RCA In): Yes
•Connector for Wired Remote Controller: Pigtail Connector (4pin)


•General
•Dimensions (W x H x D): 7-13/16" x 1-15/16" x 4-1/8"
•Weight: 2.7 lbs
•Operating Voltage: 14.4V (11-16V allowable)
•Current Consumption: 14A
•Fuse: 40A

<
