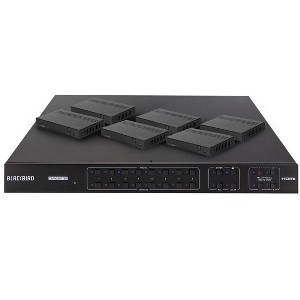

Monoprice Blackbird 4K HDMI Matrix, 8x8, HDBaseT, HDR, 18G, 4K@60Hz, YCbCr 4:4:4, HDCP 2.2, EDID, IR, SPDIF, RCA, TCP/IP, RS-232, W/ 7 Receivers 70m

About this item

Highlights

  • Supports HDMI resolutions up to 4K@60Hz with YCbCr 4:4:4, including 1080p 3D video. Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications.
  • Can transmit 4K signals to distances up to 131 feet (40 meters) and 1080p signals to distances up to 229 feet (70 meters) over a single Cat5e/6 Ethernet cable.
  • Features 7 HDBaseT outputs and includes 7 receivers. Supports the 24V Power over Cable (PoC) feature, allowing the receivers to draw their power from the matrix over the Ethernet cable.
  • Includes a local HDMI output with audio extracted to the digital optical S/PDIF and balanced stereo analog audio outputs.
  • Includes smart EDID control using the 4-pin DIP switch on the rear panel. Can be controlled using the front panel controls, the included IR remote control, or with a computer using an RS-232 or Ethernet connection.

Specifications

Dimensions (Overall): 21.6 inches (L), 5.8 inches (H) x 15.5 inches (W)

Weight: 16.86 pounds

Model name: 139670

Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869

TCIN: 79447297
Origin: imported

The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.

We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.

Description

This Blackbird 4K 8x8 HDBaseT Matrix features 8 HDMI inputs, 1 HDMI output with audio breakout, and 7 HDBaseT outputs. It supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 and can transmit 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 229 feet (70 meters) over a single Cat5e/6 Ethernet cable. Audio extracted from the HDMI signal can be output using the digital optical S/PDIF and balanced stereo analog connectors. It supports bidirectional IR extension and features front panel buttons, IR remote control, RS-232, and Web GUI control options. It supports the Power over Cable (PoC) feature, which allows the receivers to draw their power from the matrix over the Ethernet cable. It includes smart EDID control using the 4-pin DIP switch on the rear panel.
