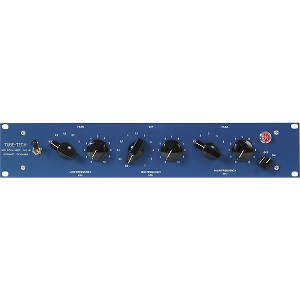

Tube-Tech ME 1B Midrange Equalizer

Looking for midrange punch as only tubes can deliver? Look no farther than the Tube-Tech ME 1B Midrange Equalizer. Based on the example of the legendary Pultec MEQ-5 from the days of yore, Tube-Tech has dedicated a modern EQ to this all-too-important region of the audio spectrum, and does it with all-tube style and warmth. It provides the kind of performance expect from a high-end EQ, and does it effortlessly. With Tube-Tech EQ, get dramatic results without having to tweak endlessly. To get the most out of the ME 1B, use it to focus on midrange while another EQ, such as the EQ 1A handles the lows and highs. And while it would be tempting to use it to make individual instruments larger than life, adding punch and sheen to an overall mix is where this EQ shines. Tube-Tech ME 1A Midrange Equalizer, First Take: - Midrange program equalizer with passive filters and tube-based gain-makeup amplifierThree sections of selectable EQBalanced and fully floating I/O Passive EQ with Tube Amplifier - The rackmount Tube-Tech ME 1B Midrange Equalizer contains a low frequency boost section for peaking, a mid frequency attenuation for dipping, and a high frequency boost section for peaking. The ME 1B contains a passive filter and a tube-based amplifier to restore the loss from the filter. The filter has a low frequency peak section with 5 selectable frequencies, a mid frequency dip section with 11 selectable frequencies, and a high frequency peak section with 5 selectable frequencies. The filter is placed directly after the input transformer, therefore eliminating noise from the amplifier when boosting either low- or high frequencies. The amplifier consists of two tubes in push-pull configuration (one ECC 83 as the pre-amp, and one ECC 82 as the output stage), and an output transformer. Both input and output are balanced (600_) and fully floating for maximum electronic isolation. The in/out key switches the equalization in and out without clicks and changes in level, while the amplifier remains in the signal path. Three Frequency Sections - Using a bell curve EQ to isolate center frequencies, the ME 1B divides the midrange into three sections, low, mid, and high. The low frequency section comprises a continuously variable peak control (0dB to +10dB) and choice of five selectable frequencies (200Hz, 300Hz, 500Hz, 700Hz, 1kHz). TheMid Frequency section comprises a Dip control that is continuously variable from 0dB to -10dB and eleven selectable center frequencies from 200Hz to 7kHz. The High Frequency section covers five selectable frequencies from 1.5kHz to 5kHz and a Peak control that is continuously variable from 0dB to +8dB. Balanced and Fully Floating I/O - Both input and output are balanced (600 ohm) and fully floating, which provides maximum electronic isolation since there is no common ground between input and output. Input and output transformers come with a static screen between the primary and secondary wirings. These screens shield the secondary from the primary and prevent RF (radio frequency) electromagnetic noise from getting across. About Tube-Tech - For over twenty years, Tube Tech has been one of the most prominent names in all-tube signal processing equipment. 'll find their gear in the best recording and mastering studios around the world. The company's founder, John Petersen is an electrical engineer who was factory trained at Solid State Logic, EMT, Studer, Sony, Neumann, and NTP Electonik (digital audio routers). He also designed tape recorder playback/recording amps for Lyrec tape recorders (found in the studios of the legendary Joe Meek and Vangelis). His first design under the name of Tube-Tech was an all-tube equalizer based on the legendary Pultec EQP 1A. Petersen continued to design and manufacture a number of innovative all-tube outboard processors including preamps, multiband compressors and summing amps
