$329.00 when purchased online
Target Online store #3991
About this item
Highlights
- Dual moving coil cartridge designed specifically for use with mono vinyl records
- 0.65 mil conical stylus is mounted on a hard duralumin cantilever
- Hanenite anti-vibration, high-damping rubber and cantilever fulcrum support eliminates unnecessary vibrations
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- Please Note: This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records
Description

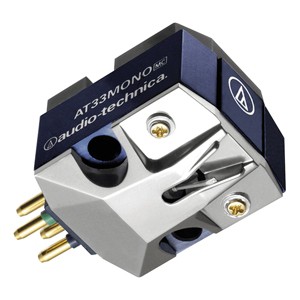

The AT33MONO is designed specifically for use with mono vinyl records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils the AT33MONO cartridge only generates electrical signal with horizontal movement yet it also has appropriate compliance in the vertical direction making it safe for use with stereo records. The cartridges 0.65 mil conical stylus is mounted on a hard duralumin cantilever for excellent sound reproduction and dependable performance.
Because the AT33MONO does not easily pick up unnecessary strain components from distorted or scratched records it produces mono audio of a much higher quality than that generated by a stereo cartridge. The cartridge features a strong rigid body and incorporates Hanenite rubber in the interior and cantilever fulcrum support to eliminate unnecessary vibrations.
Features
•Dual moving coil cartridge designed specifically for use with mono vinyl records.*
•0.65 mil conical stylus mounted on a hard duralumin cantilever
•High-Damping Rubber Eliminates Unnecessary Vibrations
•PCOCC Coil Enables Pure Signal Transfer
•Strong Rigid Body Construction
•High-Quality Brass Fastening Screw
•Compatible with stereo playback systems
*Please Note:This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records. It is designed to play microgroove 33-1/3 and 45 RPM vinyl records.
What's in the Box
•AT-33MONO Dual Moving Coil Cartridge
•Non-Magnetic Screw Driver
•Installation Hardware
•PCOCC Lead Wire Set
•Brush
•Manual
Specifications
•Frequency Response: 20-20000 Hz
•Channel Separation: 30dB (1kHz)
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 2.3-2.7 g (2.5 g standard)
•Recommended Load Impedance : More than 100 ohms (when head amplifier is connected)
•Coil Impedance: 10 ohms (1 kHz)
•DC Resistance: 10 ohms
•Coil Inductance: 28 H (1 kHz)
•Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.0dB (1kHz)
•Stylus Shape: 0.65 mil conical
•Cantilever: Duralumin pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 6 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Dimensions: 0.63 0.65" 1.04"
•Body Material: Aluminum/Synthetic Resin
•Mounting Feature: Half-inch mount
•Stylus Size: Nude square shank
•Type: MC-type
•Weight: 6.9 g (0.24 oz)
Because the AT33MONO does not easily pick up unnecessary strain components from distorted or scratched records it produces mono audio of a much higher quality than that generated by a stereo cartridge. The cartridge features a strong rigid body and incorporates Hanenite rubber in the interior and cantilever fulcrum support to eliminate unnecessary vibrations.
Features
•Dual moving coil cartridge designed specifically for use with mono vinyl records.*
•0.65 mil conical stylus mounted on a hard duralumin cantilever
•High-Damping Rubber Eliminates Unnecessary Vibrations
•PCOCC Coil Enables Pure Signal Transfer
•Strong Rigid Body Construction
•High-Quality Brass Fastening Screw
•Compatible with stereo playback systems
*Please Note:This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records. It is designed to play microgroove 33-1/3 and 45 RPM vinyl records.
What's in the Box
•AT-33MONO Dual Moving Coil Cartridge
•Non-Magnetic Screw Driver
•Installation Hardware
•PCOCC Lead Wire Set
•Brush
•Manual
Specifications
•Frequency Response: 20-20000 Hz
•Channel Separation: 30dB (1kHz)
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 2.3-2.7 g (2.5 g standard)
•Recommended Load Impedance : More than 100 ohms (when head amplifier is connected)
•Coil Impedance: 10 ohms (1 kHz)
•DC Resistance: 10 ohms
•Coil Inductance: 28 H (1 kHz)
•Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.0dB (1kHz)
•Stylus Shape: 0.65 mil conical
•Cantilever: Duralumin pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 6 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Dimensions: 0.63 0.65" 1.04"
•Body Material: Aluminum/Synthetic Resin
•Mounting Feature: Half-inch mount
•Stylus Size: Nude square shank
•Type: MC-type
•Weight: 6.9 g (0.24 oz)
Dimensions (Overall): .65 inches (H) x 1.04 inches (W) x .63 inches (D)
Weight: .01 pounds
Electronics Condition: New
Package Quantity: 1
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 1003844674
UPC: 4961310098964
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
